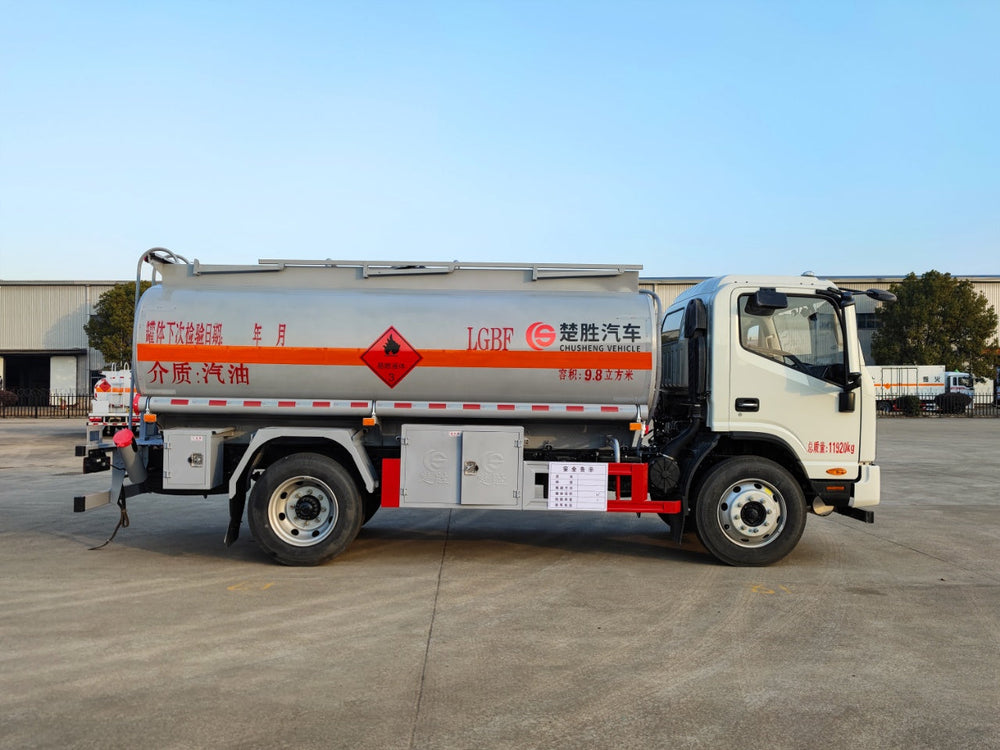

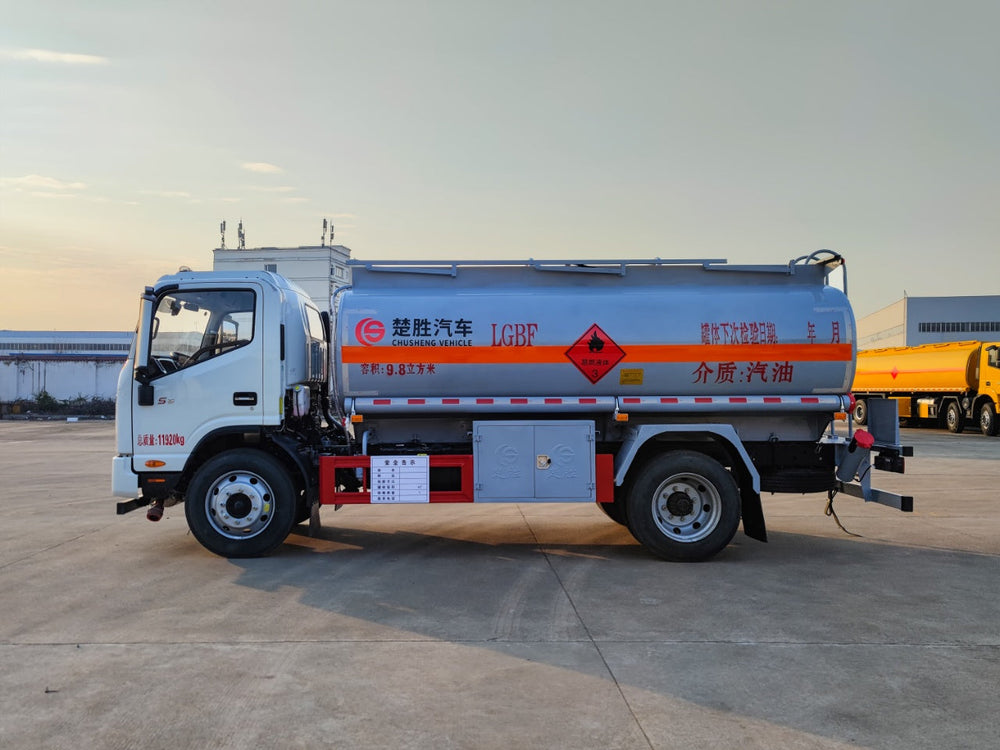

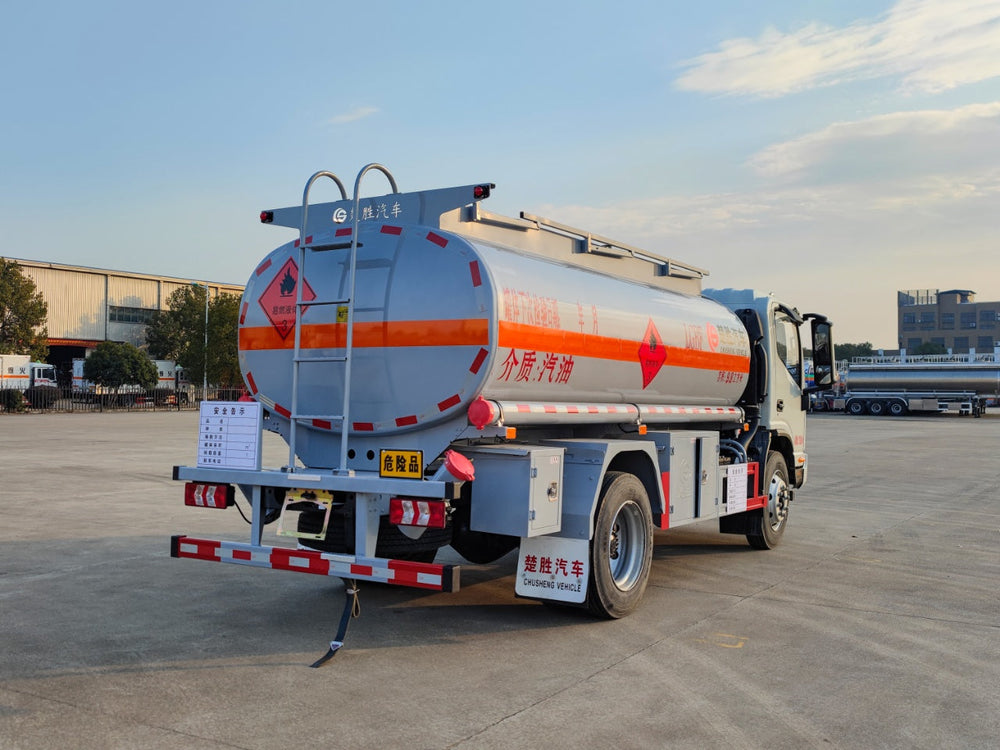

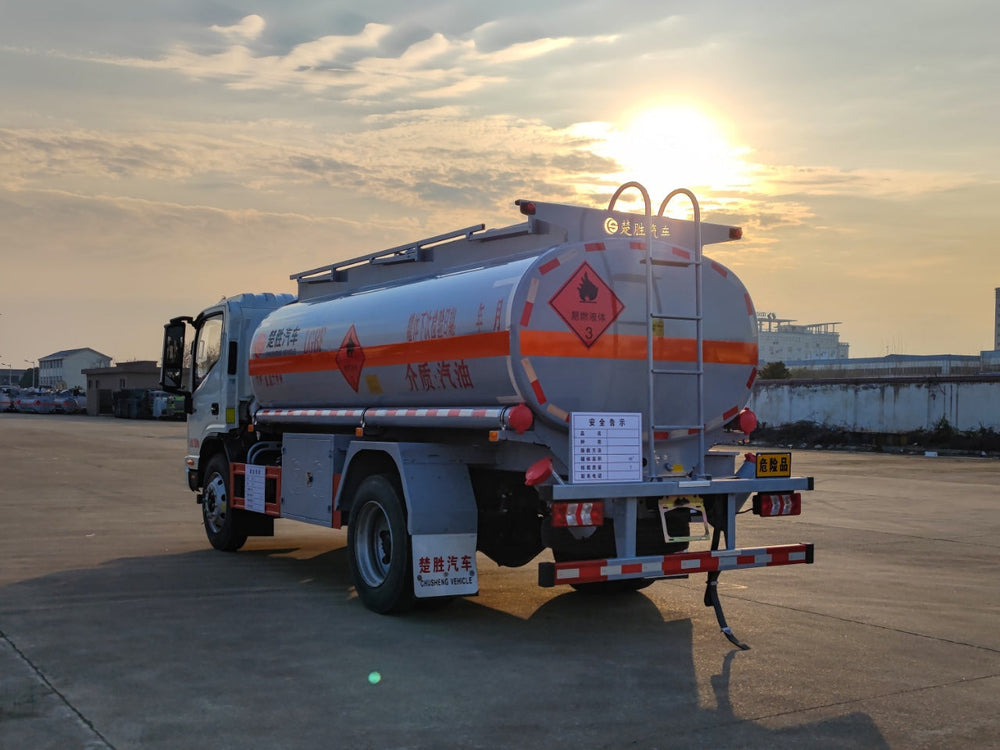

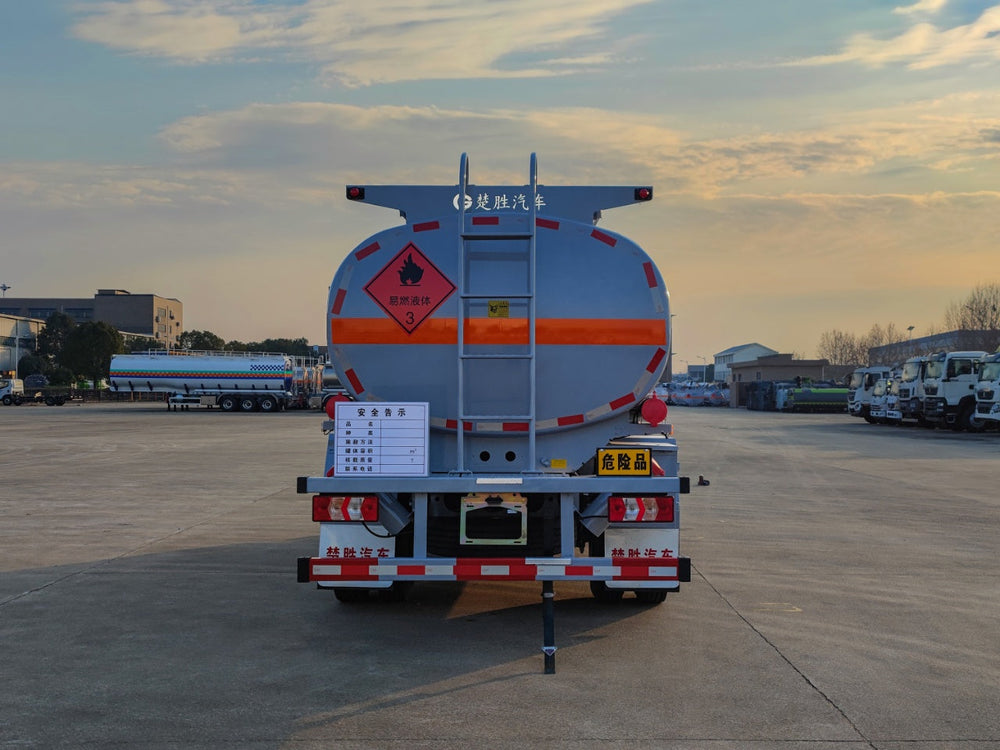

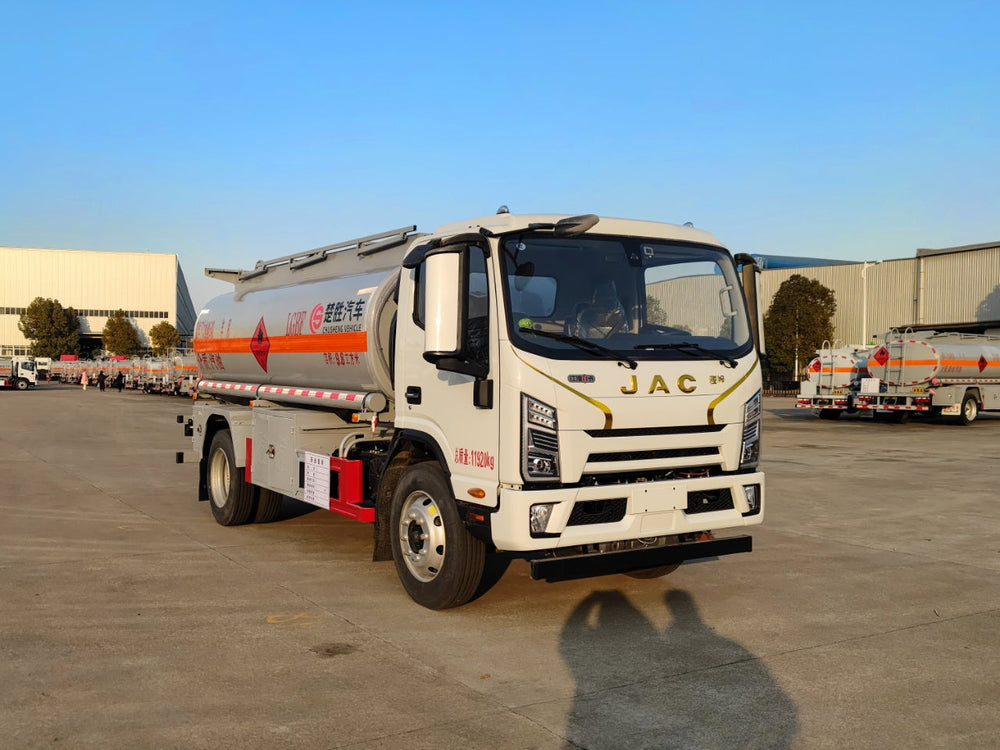

JAC 10m³ Oil Tank Truck
Request a Quote Now
1. Basic Chassis Parameters
| Parameter | Value |
|---|---|
| Chassis Model | HFC1120P31K5C6ZS |
| Gross Vehicle Weight | 11920 kg |
| Curb Weight | 3080 kg |
| Overall Dimension (L×W×H) | 6925 × 2320 × 2580 mm |
| Rated Seating Capacity | 3 persons |
| Wheelbase | 3845 mm |
| Leaf Spring Configuration | 9 / 9+7 |
2. Powertrain & Axle Configuration
| Parameter | Value |
|---|---|
| Cab Type | JAC High-End Junling S9 New Cab, Single-Row 2100mm Wide-Body |
| Engine Model | Yuchai YCY30170-61 |
| Engine Power | 170 HP |
| Transmission | Wanliyang 8-Speed Gearbox |
| Front Axle Rated Load | 3.5 Tons |
| Rear Axle Rated Load | 7.2 Tons |
| Frame Specification | 214mm Double-Layer Frame |
| Tire Specification | 9R22.5 14PR Steel Wire Radial Tires |
| Tire Safety Feature | Explosion-Proof Tires |
| Rear Stabilizer Bar | Equipped |
3. Brake & Safety Systems
| Parameter | Value |
|---|---|
| Brake System | Air-Over-Hydraulic Spring Brake, Front Disc Brake |
| ABS Anti-Lock Braking | Equipped |
| Speed Limiter | Equipped |
| Brake Pad Wear Alarm | Equipped |
| Safety Alarm Switch | Equipped |
| 2021 Regulation Dual Warning | LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System) |
| Driving Video Recorder | Equipped |
4. Steering & Clutch Systems
| Parameter | Value |
|---|---|
| Steering System | Hydraulic Power Steering, Adjustable Steering Column |
| Steering Wheel | Multifunctional Steering Wheel |
| Clutch System | Air-Push Clutch Booster |
5. Electrical & Interior Configuration
| Parameter | Value |
|---|---|
| Power Switch | Built-In Main Power Switch |
| OBD Interface | Equipped |
| Rearview Mirror | Frame-Type Rearview Mirror with Electric Heating |
| Daytime Running Lights | LED Daytime Running Lights |
| Headlight | Adjustable Headlights |
| Instrument Panel | Multifunctional Instrument Cluster |
| Engine Preheating | Engine Fuel Preheating System |

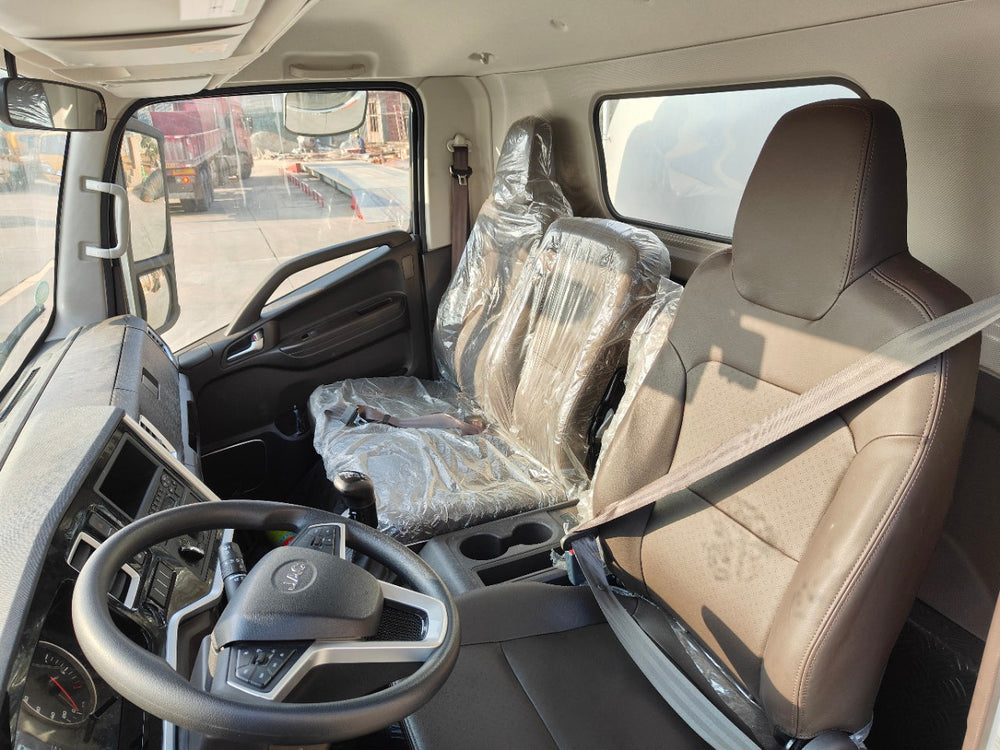

| Cab Interior | Original Factory Air Conditioner, Radio |
| PTO | Power Take-Off Equipped |
6. Tank Body (Upper Structure) Configuration
| Parameter | Value |
|---|---|
| Tank Volume | Approx. 9.8 m³ (per official announcement dimensions) |
| Transport Medium | Diesel, Gasoline |
| Tank Body Thickness | 5 mm (≥ 4.2 mm) |
| Tank Head Thickness | 5 mm (≥ 4.2 mm) |
| Pump System | Equipped with pump |
| European Standard Manhole | 1 unit |
| Bottom Valve | 1 unit with acoustic-optical automatic alarm system |
| Bottom Loading System | 1 unit (installed on passenger side) |
| Vapor Recovery System | 1 unit |
| Anti-Overflow System | Anti-overflow probe and socket |
| Pump Inlet/Outlet | Installed on passenger side |
| Toolbox | 1 unit (1.05m long, driver side) |
| Fuel Dispenser | Large-Flow Fuel Dispenser |
| Triangular Top Light | Equipped |
| Static Grounding Reel | Equipped |
| Folding Guardrail | Equipped |
| Fire Cap | 1 unit |
| Oil Delivery Pipes | 2 pipes equal to tank length |
| Fire Extinguishers | 2 units |
| Other Accessories | Standard remaining configuration |
