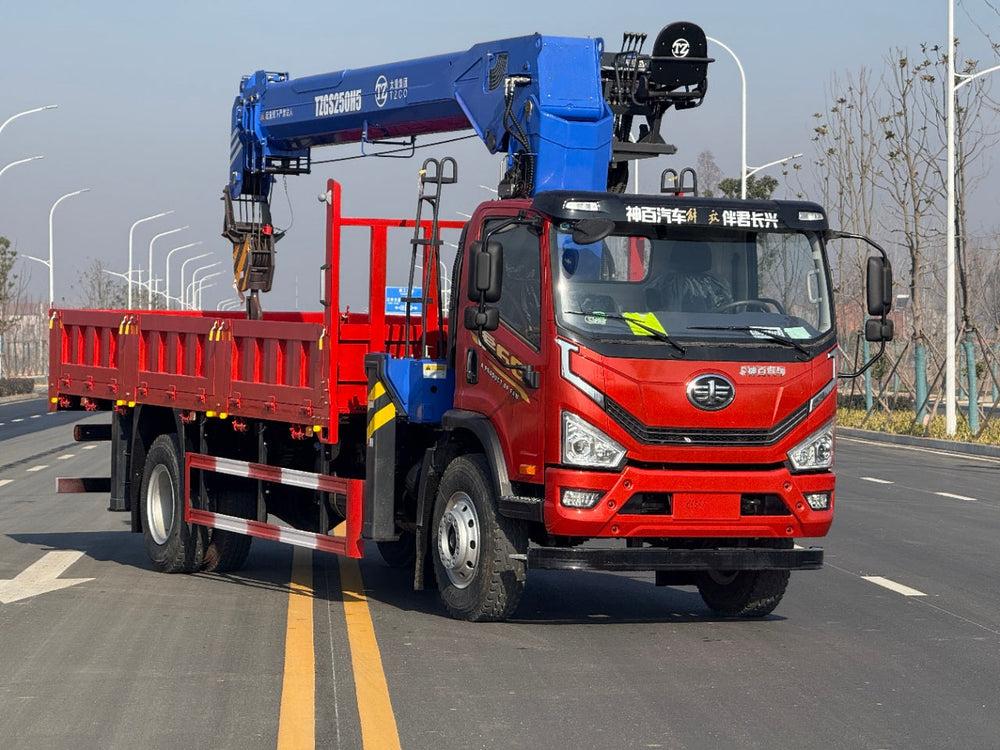

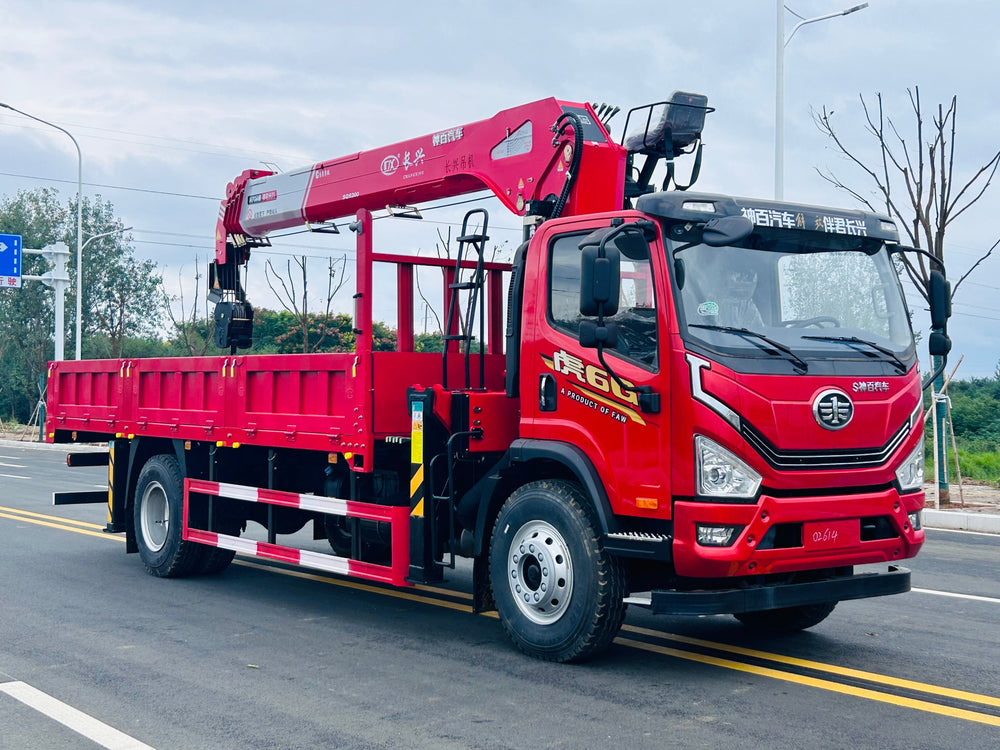

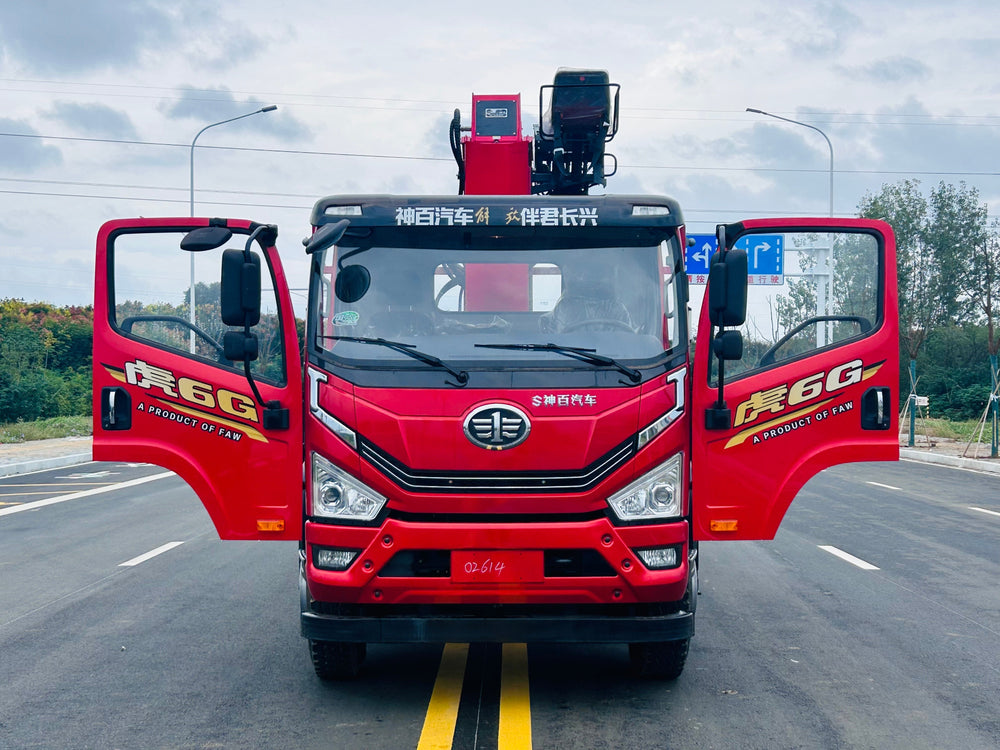

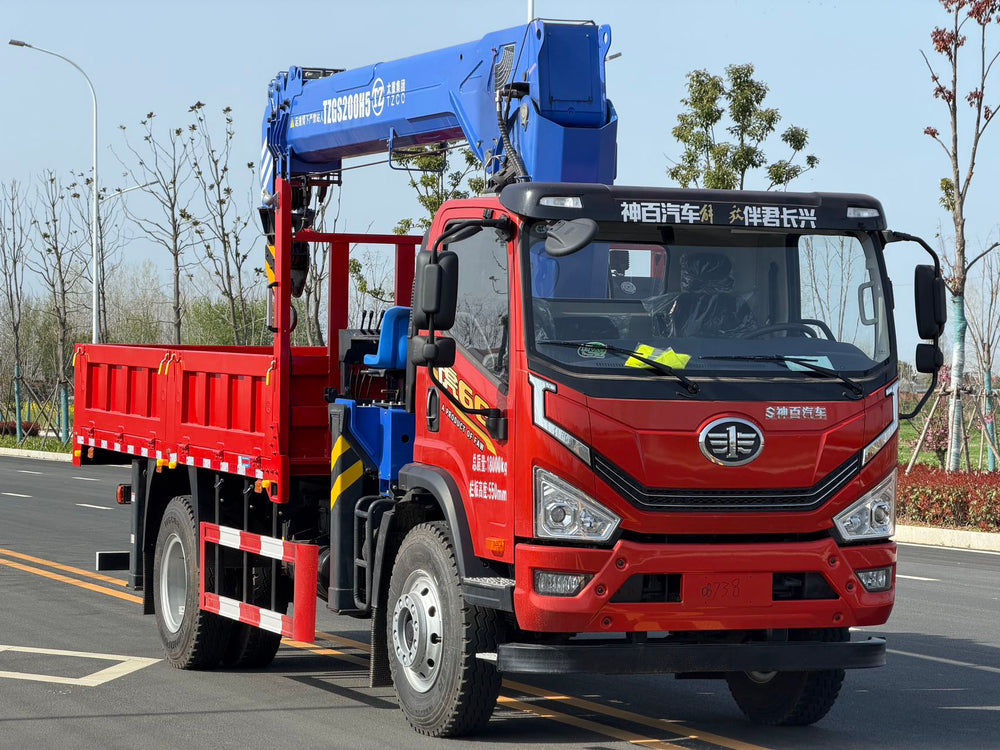

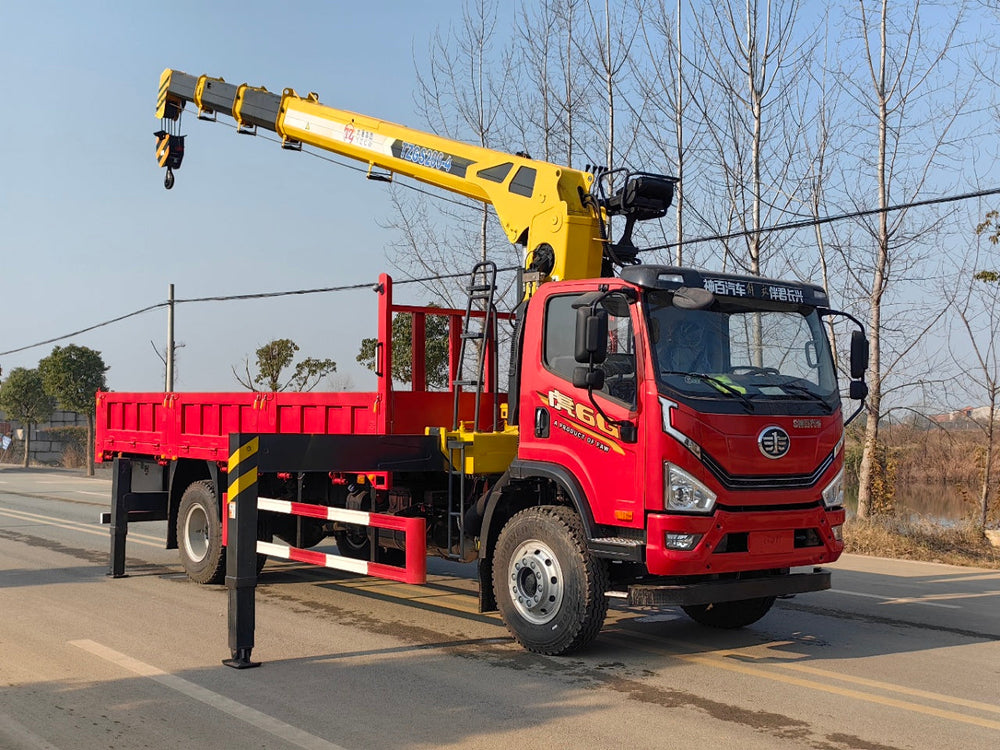

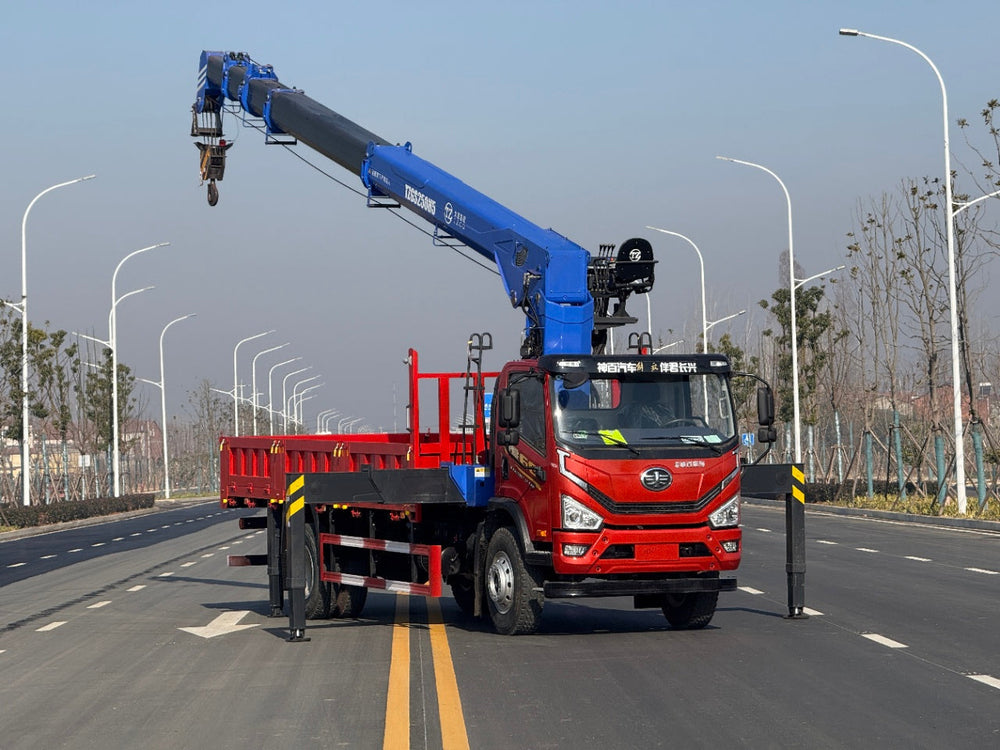

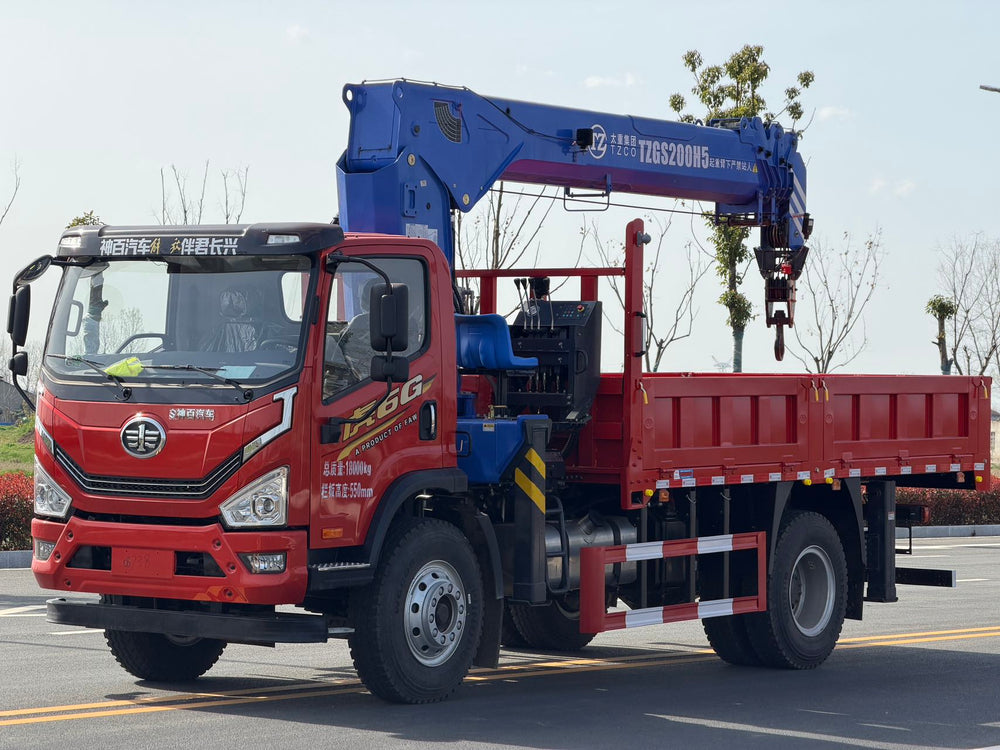

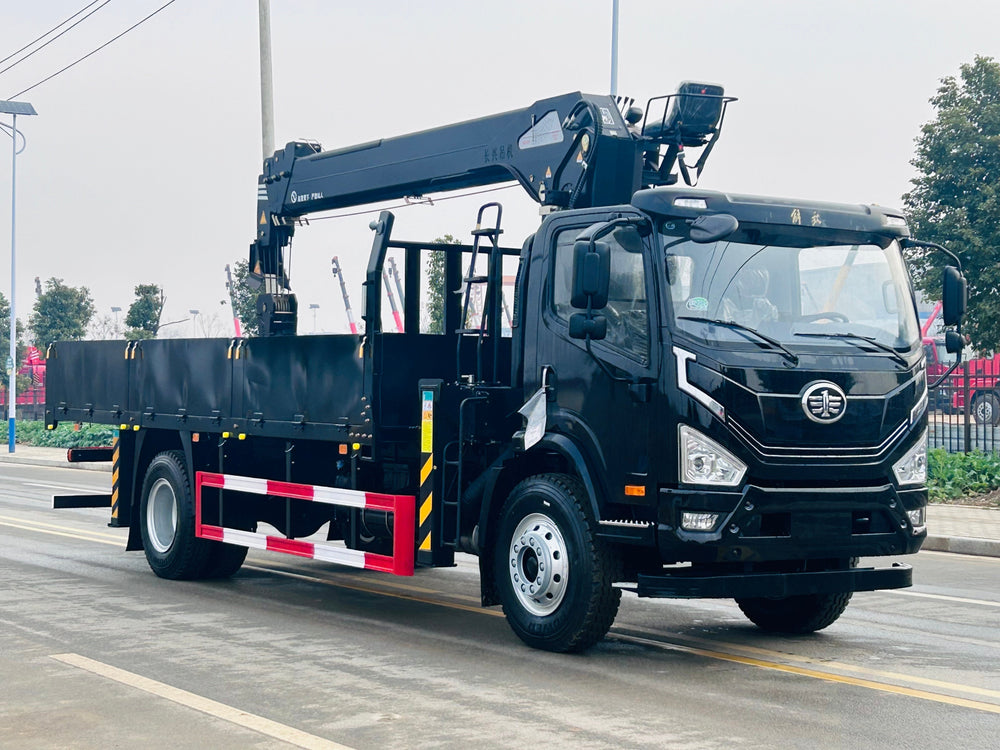

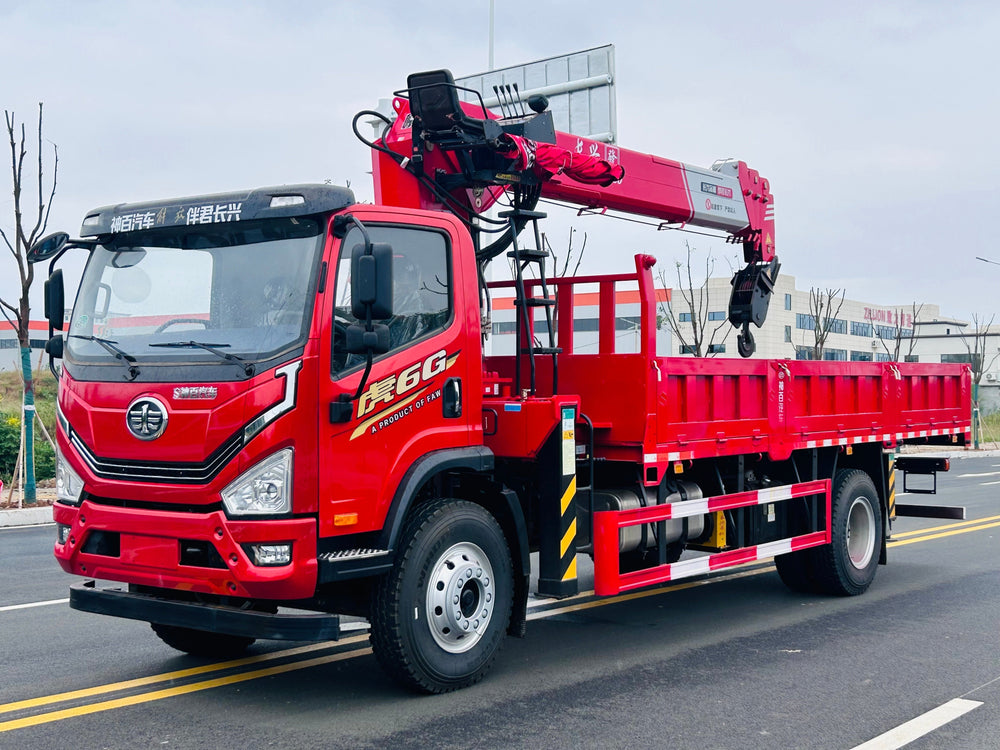

FAW 220HP 8-10T Telescopic Boom Crane
Request a Quote Now
1. Model & Weight Parameters
| Parameter | Value |
|---|---|
| Complete Vehicle Approval Model Options | ABC5186J / ABC5185 / ABC5180 / 5181SQC6 |
| Chassis Approval Model | CA1180P40K8L4BE6A90 |
| Optional Curb Weights | 12600KG / 12000KG / 11500KG / 11000KG / 10000KG |
| Separate Curb Weight Option | 12800KG |
| Gross Vehicle Weight | 18000KG |
2. Cab & Dimension Parameters
| Parameter | Value |
|---|---|
| Cab Basic Type | Wide-body Single-row Cab |
| Optional Wheelbase Configurations | 5100mm / 4500mm / 4250mm / 3900mm / 3600mm (5 options) |
| Optional Final Drive Ratio | 4.875 / 5.286 |
| Optional Rear Axle Rating | 9 Ton / 10 Ton (2 options) |
| Overall Dimension Options | Length: 9000mm / 8280mm / 7980mm, Width×Height: 2550mm×3880mm |
| Cargo Box Dimension | Length: 4900~6100mm, Width×Height: 2550mm×550mm |
3. Powertrain, Frame & Tire Spec
| Parameter | Value |
|---|---|
| Engine Specification | Yuchai 220 HP, customizable to 240 HP |
| Transmission | Shaanxi Fast 8-speed Gearbox |
| Main Frame Structure | 280mm Through-type Three-layer Frame |
| Tire Specification | 10.00R20 |
4. Complete Cab Interior & Exterior Configuration
| Parameter | Value |
|---|---|
| Cab Structure | Hu6G flat-roof wide-body single-row cab, mechanical semi-floating shock absorption, manual lever tilting mechanism |
| Exterior Accessories | Sun visor, non-integrated rearview mirror, LED daytime running light + halogen automatic headlight, steel front bumper |

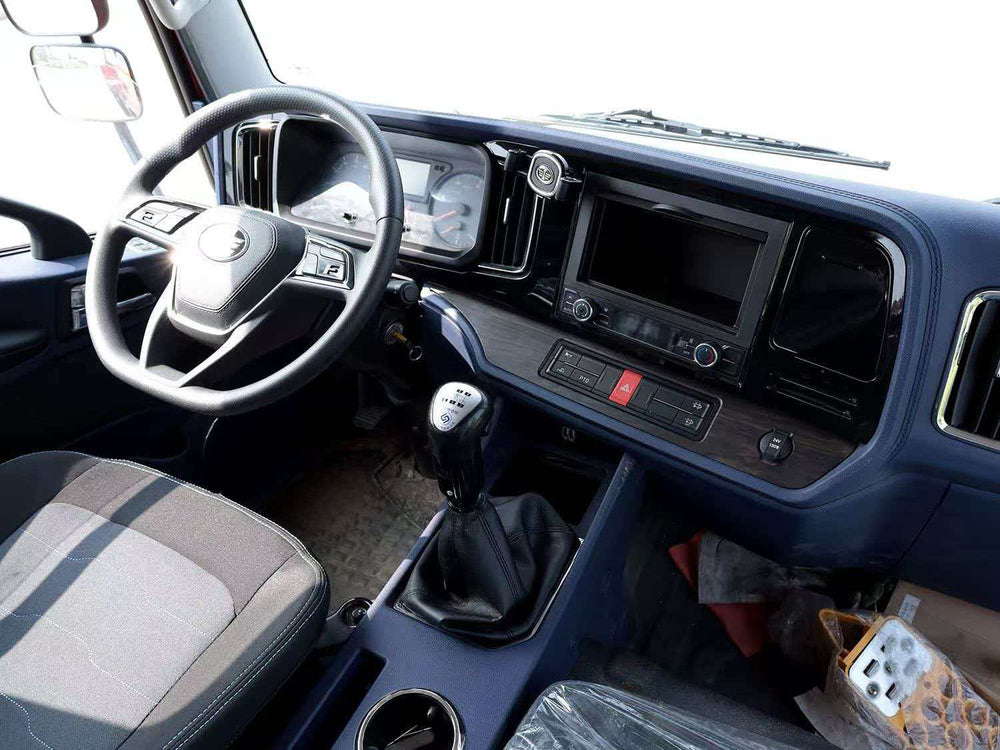

| Instrument Panel | Surround-style dashboard (Star Ocean Blue color + walnut wood water transfer printing on middle panel) |
| Steering & Instrument | Multifunctional steering wheel, mechanical instrument panel, Bluetooth radio receiver |
| Interior Electric Configuration | Automatic air conditioner, electric window lifters, central locking system, phone bracket, 2×USB charging ports |
| Intelligent Systems | Vehicle internet system, driving video recorder, cruise control |
5. Optional Upper Crane Assembly Models
| Crane Serial No. | Crane Model & Technical Parameters |
|---|---|
| 1 | Changxing 8 Ton, 4-section Boom F-series Crane
|
| 2 | Changxing 8 Ton, 5-section Synchronous Telescopic C-series Crane
|
| 3 | Sany 8 Ton, 4-section Boom Crane
|
| 4 | Sany 8 Ton, 5-section Boom Crane
|
| 5 | Sany 8 Ton, 5-section Boom Crane
|
| 6 | TaiZhong 8 Ton, 4-section Boom Crane
|
| 7 | TaiZhong 8 Ton, 5-section Boom Crane
|
| 8 | TaiZhong 10 Ton, 5-section Boom Crane
|
