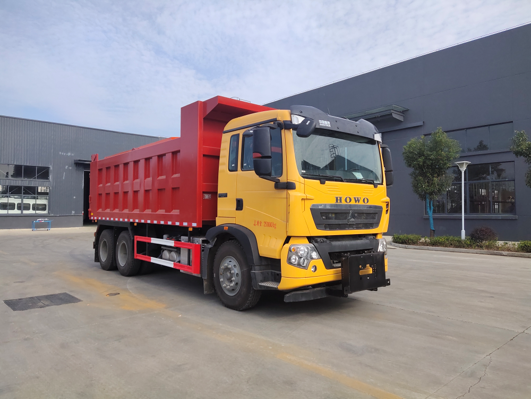

HOWO 12m³ 290HP Snow Removal Truck
Request a Quote Now
1. Basic Vehicle & Chassis Specifications
| Parameter | Value |
|---|---|
| Vehicle Type | Snow Removal Truck |
| Complete Vehicle Model | CL5250TCX6HL |
| Gross Vehicle Weight | 25000 kg |
| Rated Load Capacity | 10370 kg / 10305 kg |
| Curb Weight | 14500 kg |
| Number of Axles | 3 |
| Leaf Spring Configuration | 11 / 10 leaves |
| Cab Seating Capacity | 2 / 3 persons |
| Approach / Departure Angle | 17°/19°, 17°/18° |
| Axle Load (Tandem Rear Axle) | 7000 kg / 18000 kg |
| Chassis Model | ZZ1257N464GF1 |
| Engine Model | MC07.25-61 |
| Engine Power | MAN 290 HP |
| Fuel Type | Diesel |
| Overall Dimension | 8750mm / 9530mm × 2550mm × 3360mm / 3650mm |
| Tire Specification | 11.00R20 |
| Number of Tires | 10 |
| Wheelbase | 4600+1350 mm |
| Front Overhang / Rear Overhang | 1430/1420mm, 1500/1350mm, 1430/1900mm |
| Maximum Speed | 89 km/h / 110 km/h |
| Front Track Width | 2035 mm |
| Rear Track Width | 1850 mm / 1850 mm |
| Hopper Body Material | Q235 Carbon Steel |
| Spreader Body Material | 4mm Carbon Steel |

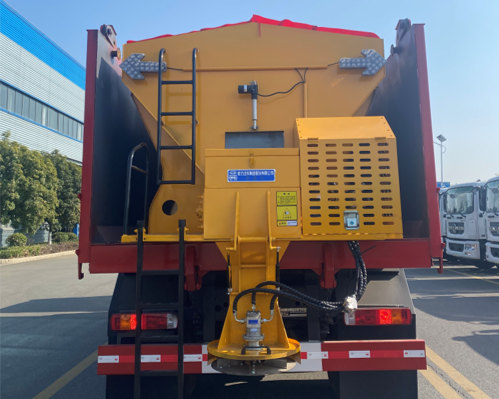

2. Deicing Agent Spreader Specifications
| Parameter | Value |
|---|---|
| Spreader Hopper Volume | 12 m³ |
| Power Take-off Mode | Chassis PTO-driven |
| Material Conveying Type | Scraper chain conveyor |
| Spreader Disc Material | Stainless Steel |
| Spreader Disc Diameter | 550 mm |
| Hydraulic Working Pressure | ≥ 16 MPa |
| Spreading Width | 2 – 15 m (adjustable) |
| Deicing Agent Application Rate | 20 – 300 g/m² (adjustable) |
| Working Speed | 5 – 30 km/h |
| Control Mode | Wired remote control |
| Dump Body Dimension | Length 6000mm, body height 1700mm, top height 2100mm, width 2550mm, with self-dumping function |
| Standard Accessories | Arrow warning light, tarpaulin, filter screen, rear access ladder |
3. Structural Features & Advantages
| Item | Description |
|---|---|
| Uniform Feeding | Filter screen installed on the spreader prevents large particles and debris from entering the system, ensuring safety of equipment, pedestrians and vehicles |
| Easy Loading & Storage | Detachable dedicated lifting support system for the spreader, convenient for storage in non-operating state |
| Reliable Discharging | V-shaped hopper with simple and reliable structure, ensures automatic falling and complete discharging of deicing agent with no residue |

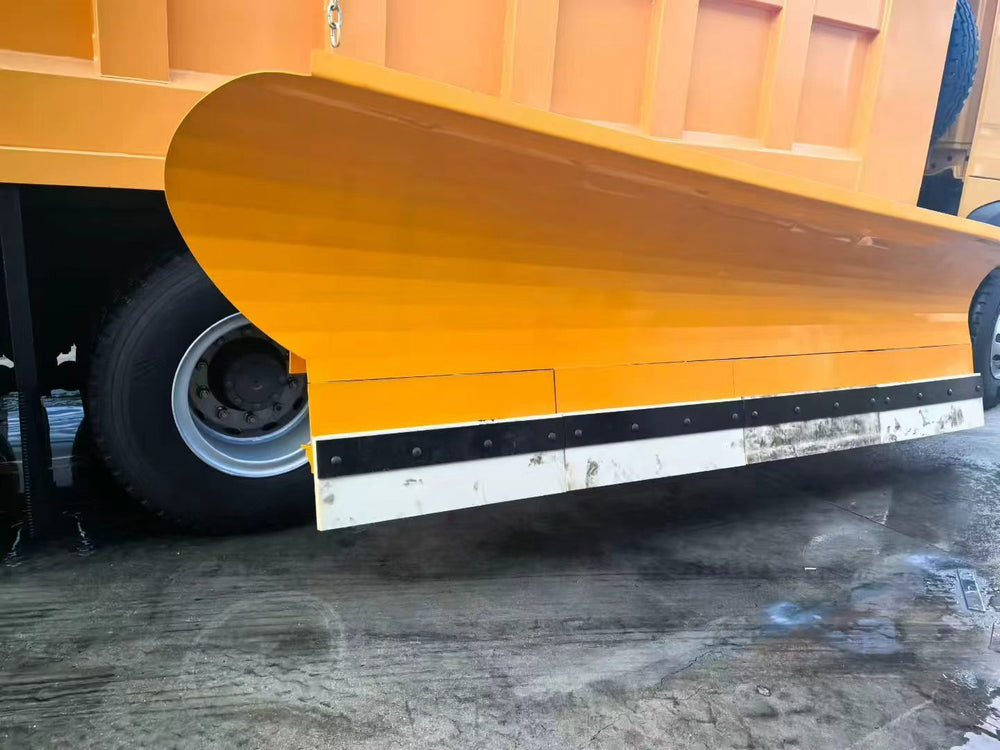

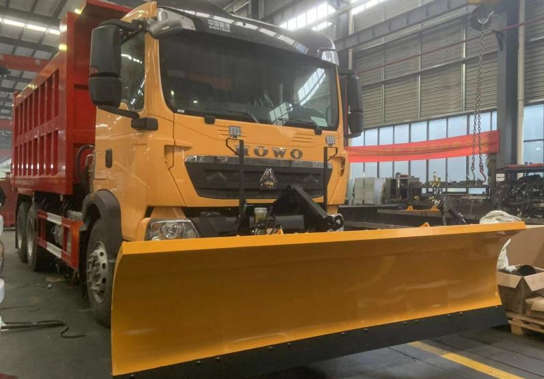

4. Optional 3.5m Snow Plow Parameters
| Parameter | Value |
|---|---|
| Snow Clearing Width | 3.5 m |
| Left-right Adjustment Angle | ± 30° |
| Working Speed | ≥ 30 km/h |
| Obstacle Clearance Height | 150 mm |
| Control Mode | Wired remote control |
| Drive System | Independent hydraulic unit |

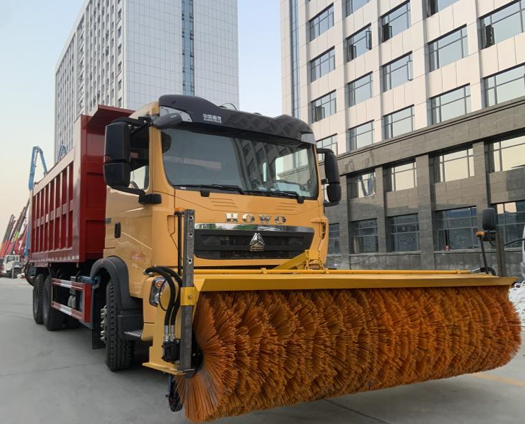

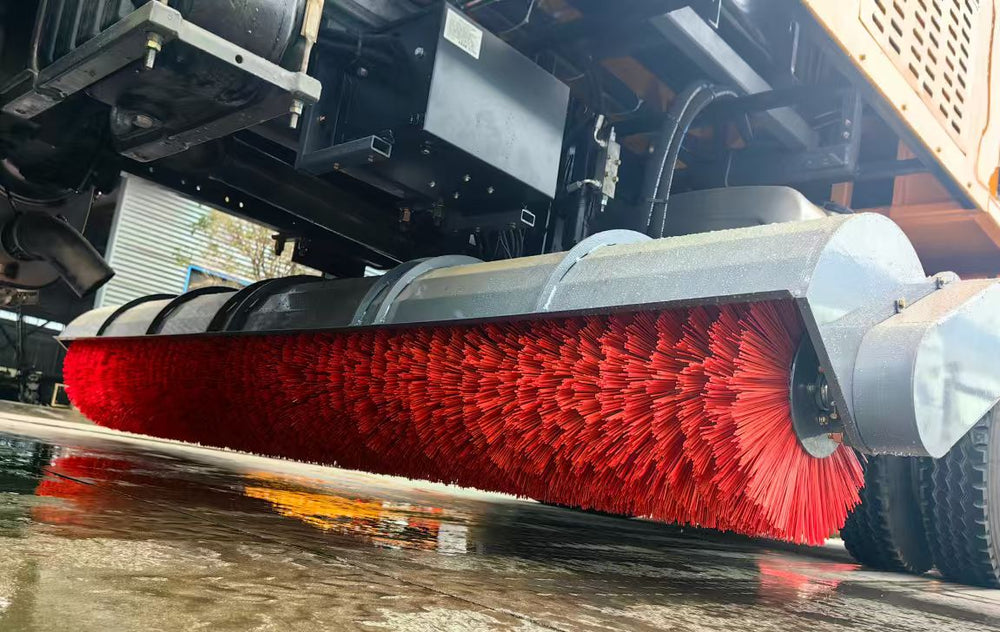

5. Optional 3.5m Snow Roller Brush Parameters
| Parameter | Value |
|---|---|
| Sweeping Width | 3.5 m |
| Brush Diameter | 800 mm |
| Left-right Adjustment Angle | ± 30° |
| Working Speed | 5 – 30 km/h |
| Obstacle Clearance Height | 250 mm |
| Vertical Deflection Angle | 6.5° |
| Control Mode | Remote control |
| Drive System | Independent hydraulic unit |
| Brush Material | Polypropylene mixed with elastic steel wire |
| Support Wheels | 2 universal load-bearing wear-resistant support wheels |
| Additional Protection | Support rods on both ends to protect brush blades from crushing damage; warning light for brush head position monitoring during operation |
