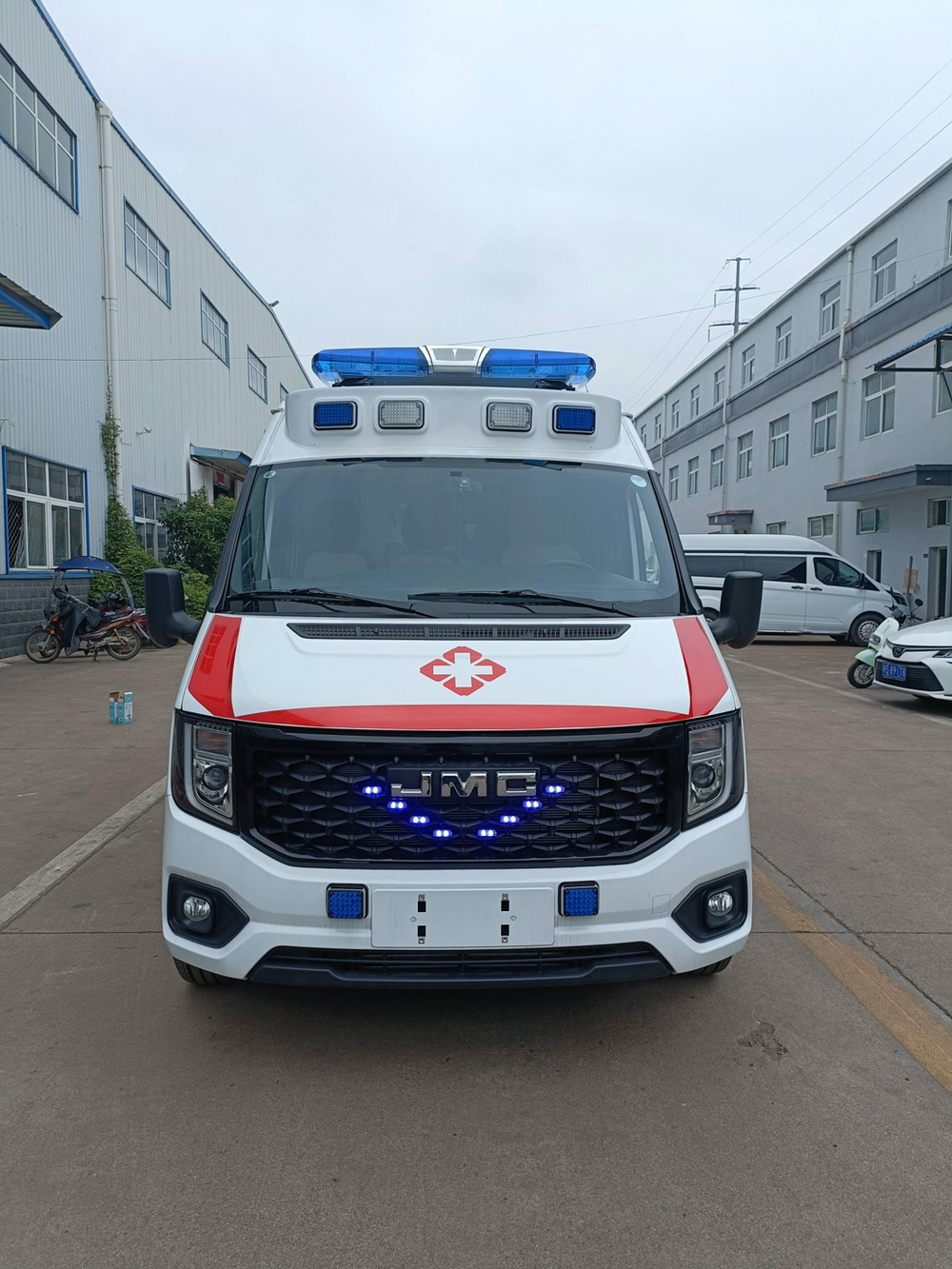

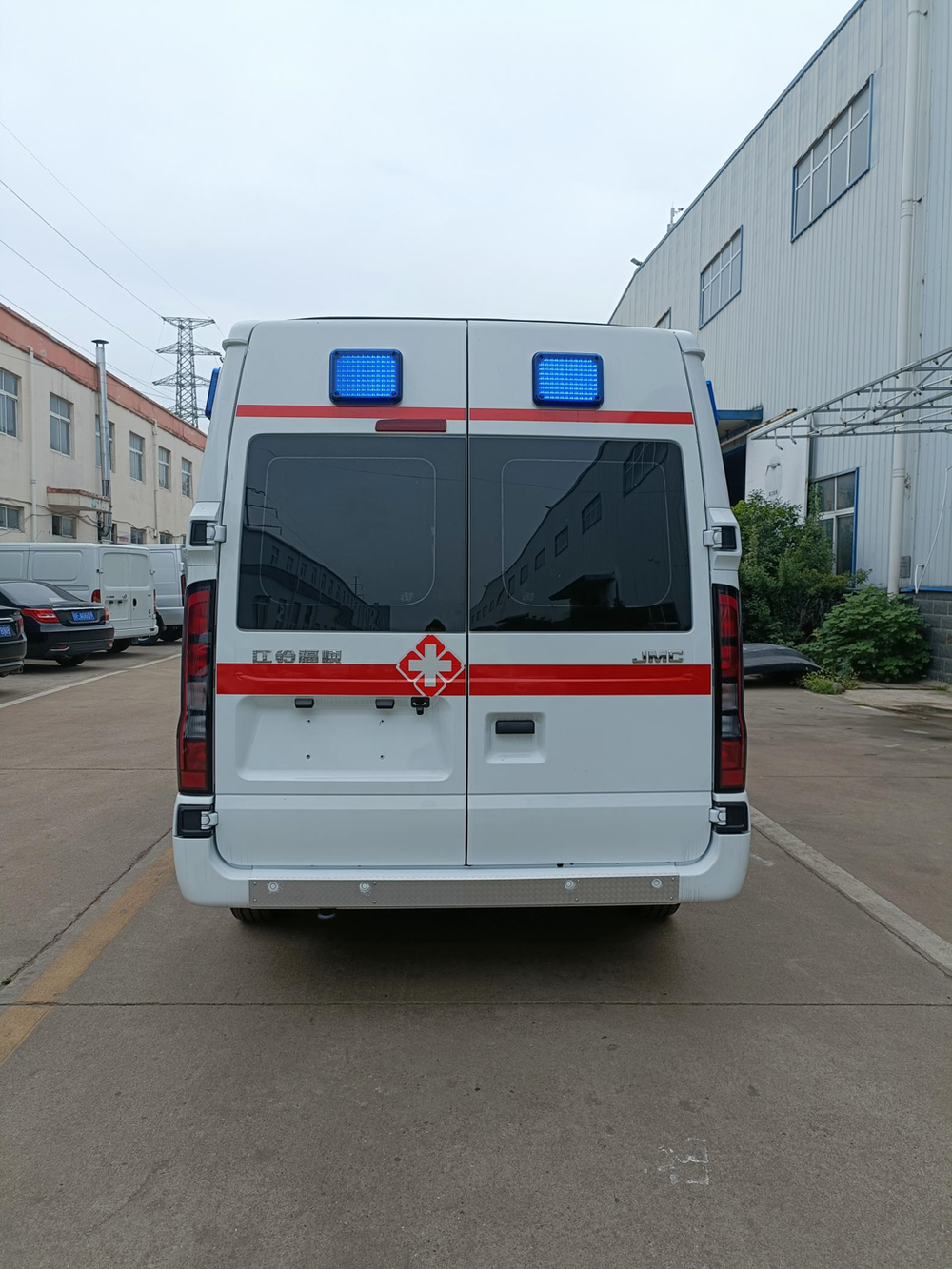

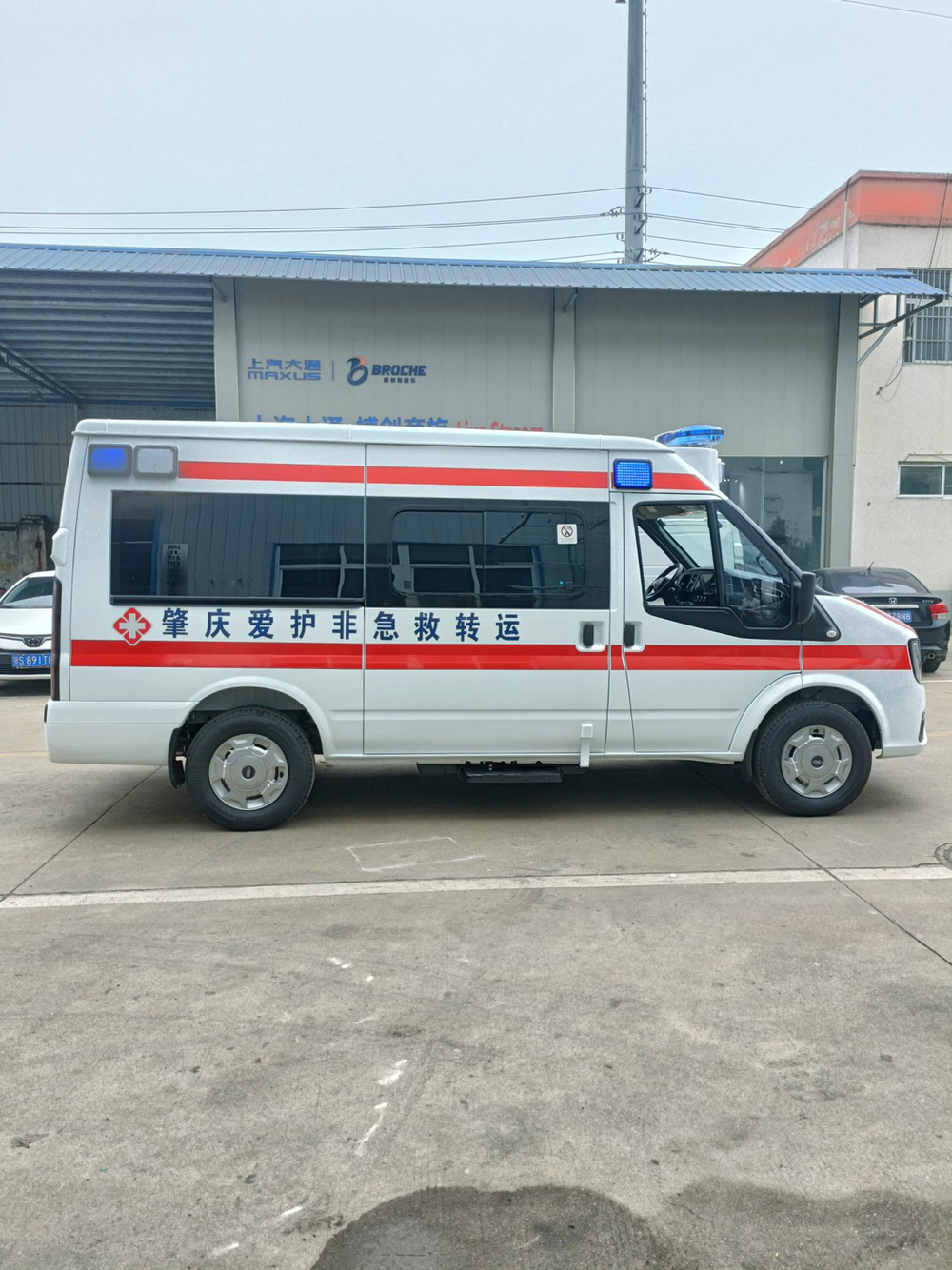

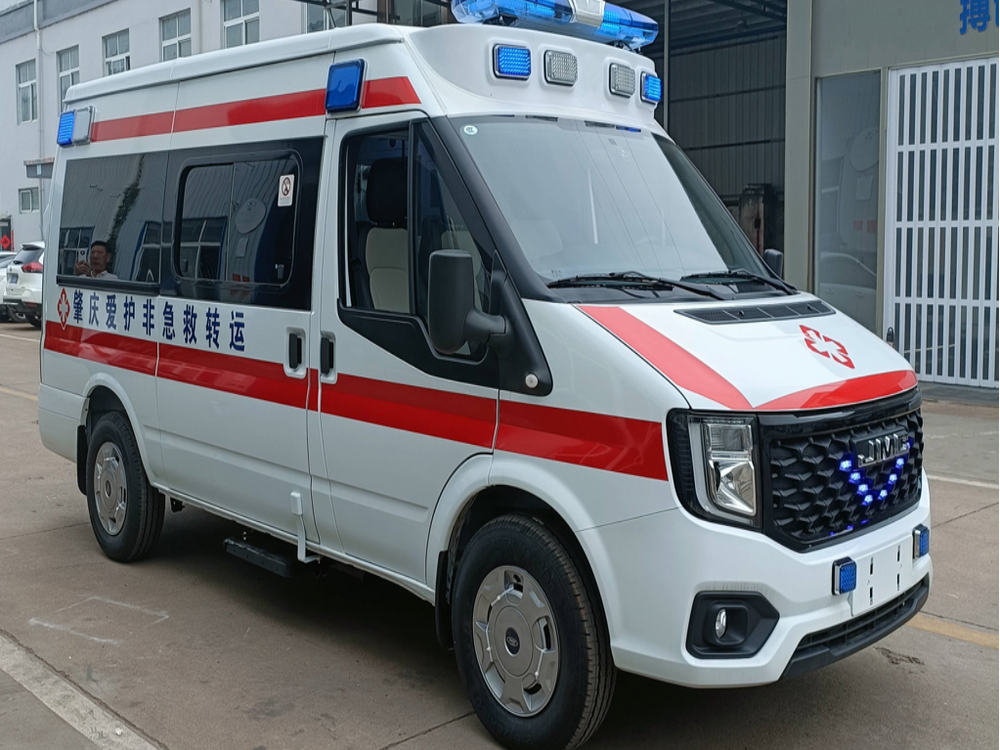

High-spec JMC Shunda Diesel Ambulance

1 / 10

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Parameter	Value
Overall Length (mm)	5495
Overall Width (mm)	1974
Wheelbase (mm)	3360
Engine Model	JX4D20A6H National VI Engine
Power Output	107 kW
Transmission	6-speed Manual
Maximum Speed	160 km/h
Fuel Tank Capacity	80L

Standard Equipment

Item Description	Specification & Remark
Stretcher & Equipment
A9 Premium Automatic Loading Stretcher, 1set	High-grade A9 type
Foldable Canvas Stretcher, 1set	Mounted at rear door
Track-type Stretcher & Guide Rail,1set	Fix loading stretcher
Sliding Infusion Hook,1set	Equipped with 2 movable hangers
Oxygen Supply System
Two 10L Oxygen Cylinders,1set	Stored in left-rear oxygen cabinet of medical compartment
Oxygen Pressure Reducer,4sets	Regulate oxygen output pressure
Standard Oxygen Outlet,3pcs	National standard
Humidifier Bottle,2pcs	Moisturize inhaled oxygen
Quick Connector,1pc	Fast interface for ventilator
Appearance & Window Film
Custom Decorative Stripe,1set	Made per client’s requirement
Full Black Solar Film + Frosted Semi-transparent Film for Cabin Window,1set	Protect patient privacy
Warning Lamp System
Roof Front Row Convex Warning Light,1set	Nice outlook, strong warning effect
Convex Strobe Light on Cab,4pcs	Nice outlook, strong warning effect
Side Strobe Lights (4 white+2 blue),6pcs	Nice outlook, strong warning effect
Rear Door Top Blue Strobe Light,2pcs	Nice outlook, strong warning effect
Alarm & Light Control Box (inside cab),1set	Durable
Alarm Handle (inside cab),1set	Easy operation
Intelligent Power System
1000W+2000W Inverter,1pc	24h uninterrupted power for medical cabin
220V Power Socket,4pcs	Installed in medical cabin
12V Power Socket,1pc	Installed in medical cabin
Independent Air Conditioner & Heater + Control Panel,1set	Separately controlled, integrated vehicle circuit panel
Multi-function Vent Fan,1set	Air intake & exhaust
LED Cabin Lamp,1set	Energy-saving & eco-friendly
LED Rear Cabin Lamp,1pc	Energy-saving
UV Disinfection Lamp,1pc	For sterilization
Door Courtesy Lamp,1pc	Energy-saving
Large-screen On-board Navigation,1set
Dashcam + Rearview Camera All-in-one,1set	Integrated machine
Rear Radar + Medical Cabin Monitoring Camera,1set
Front-rear Intercom,1set	Hands-free

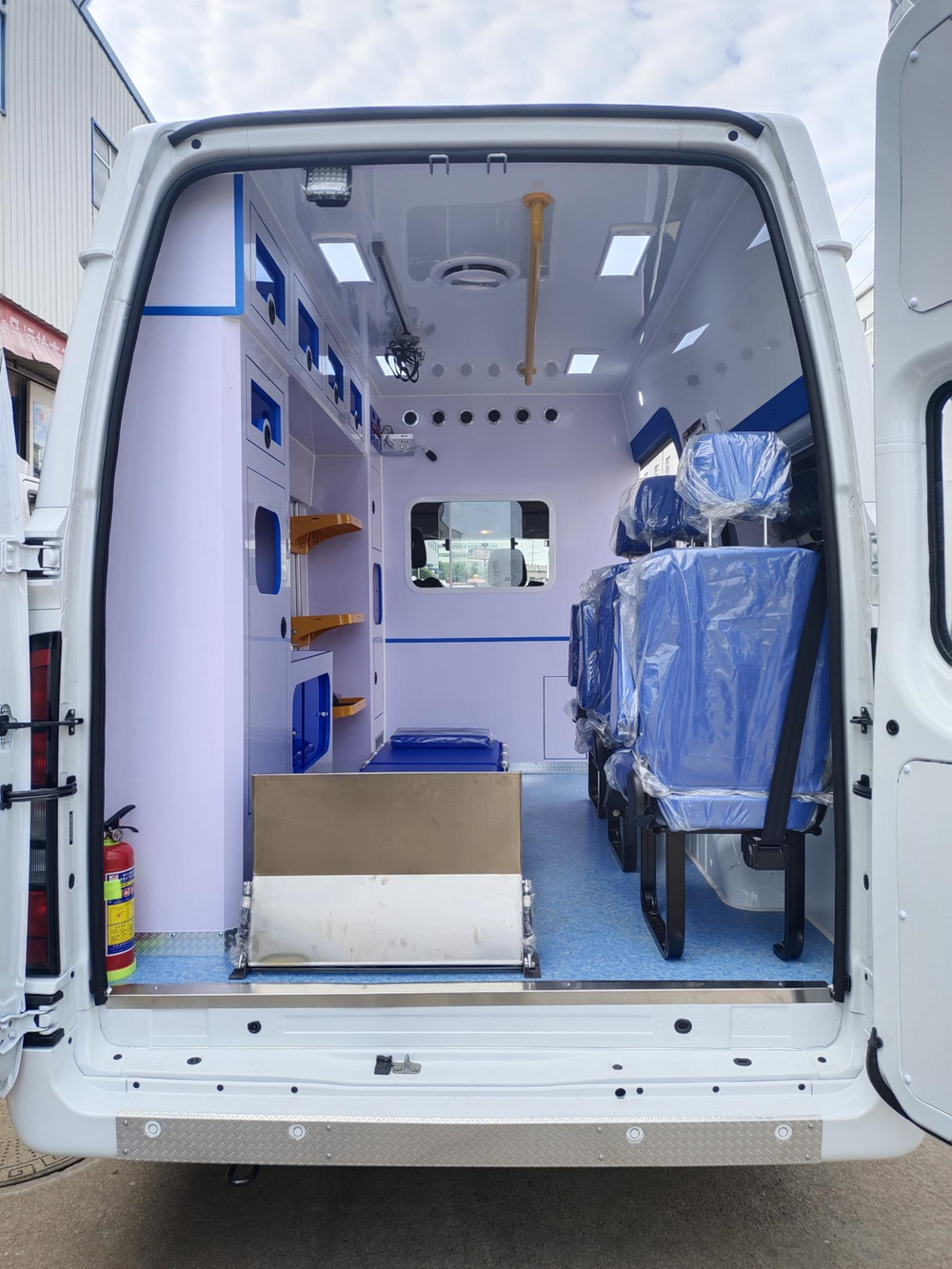

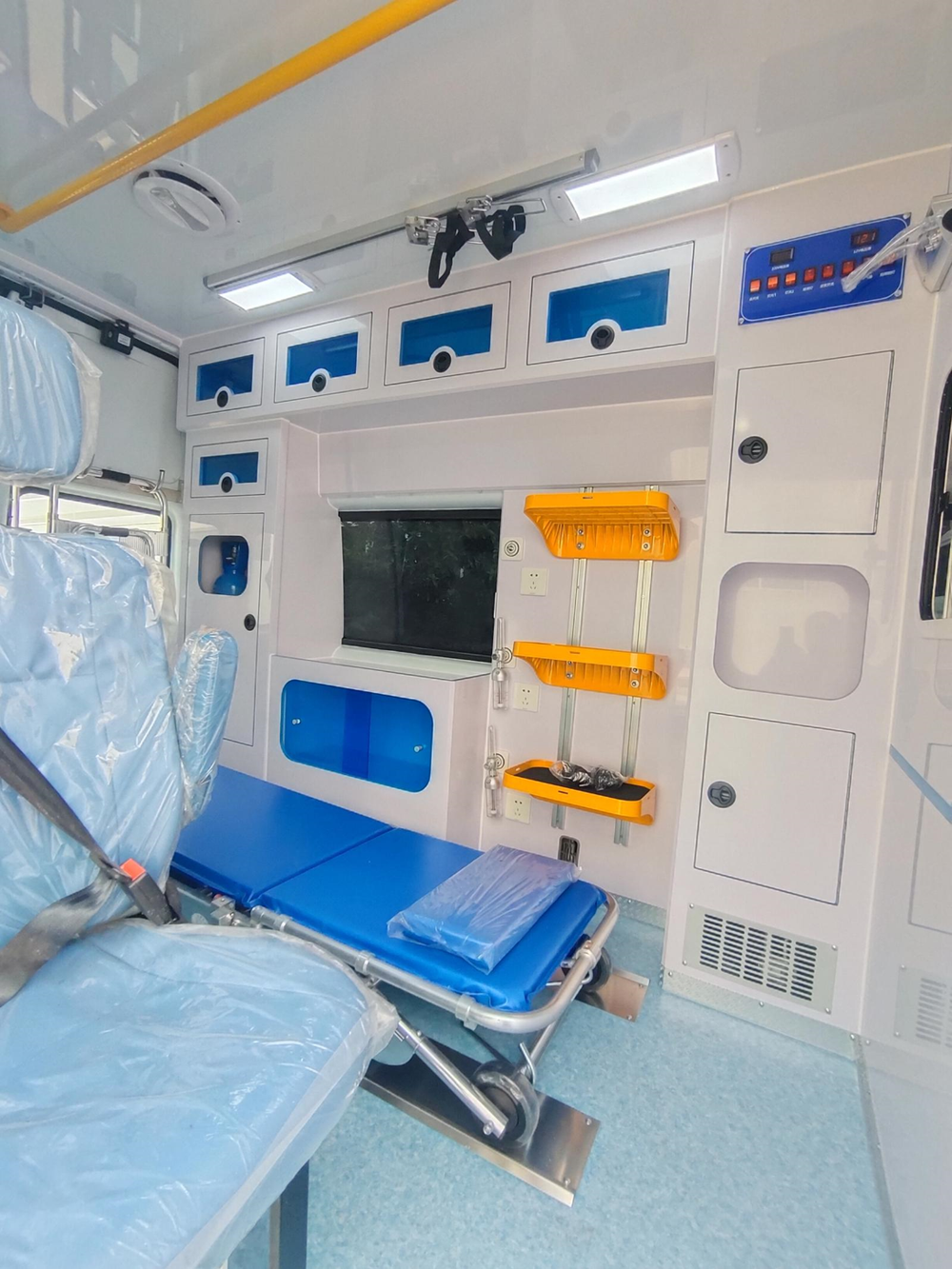

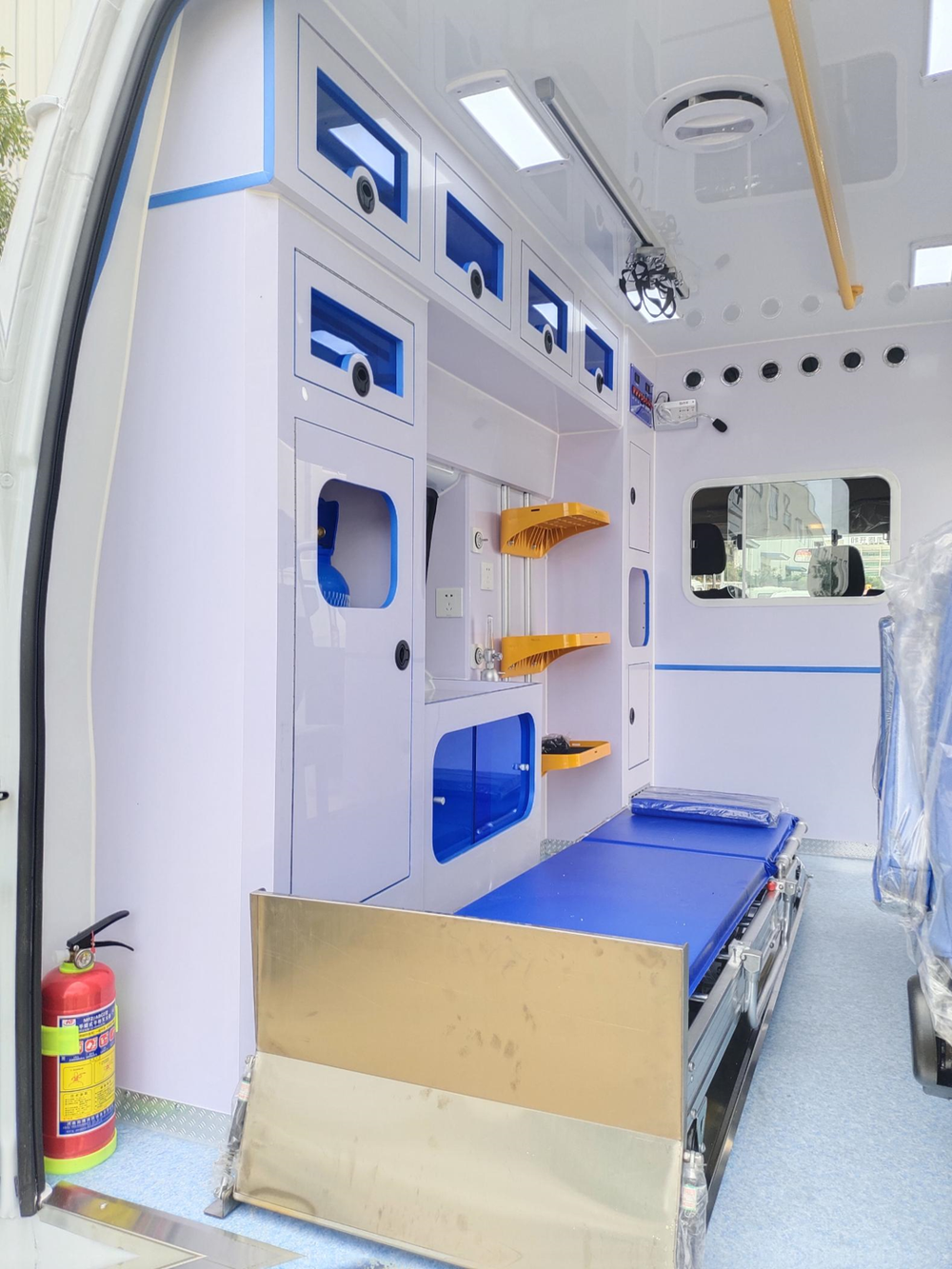

Medical Cabin Cabinet & Seat System

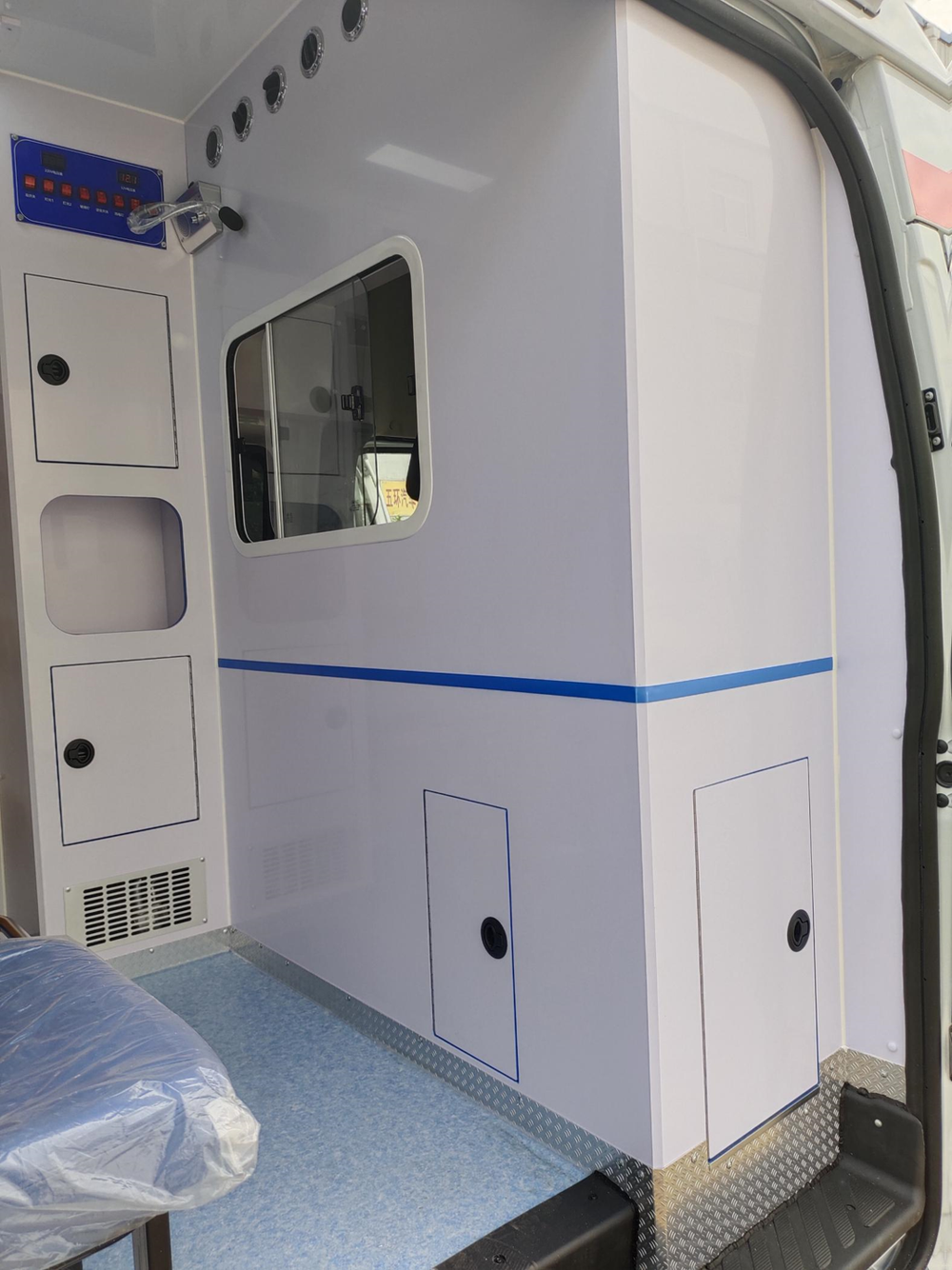

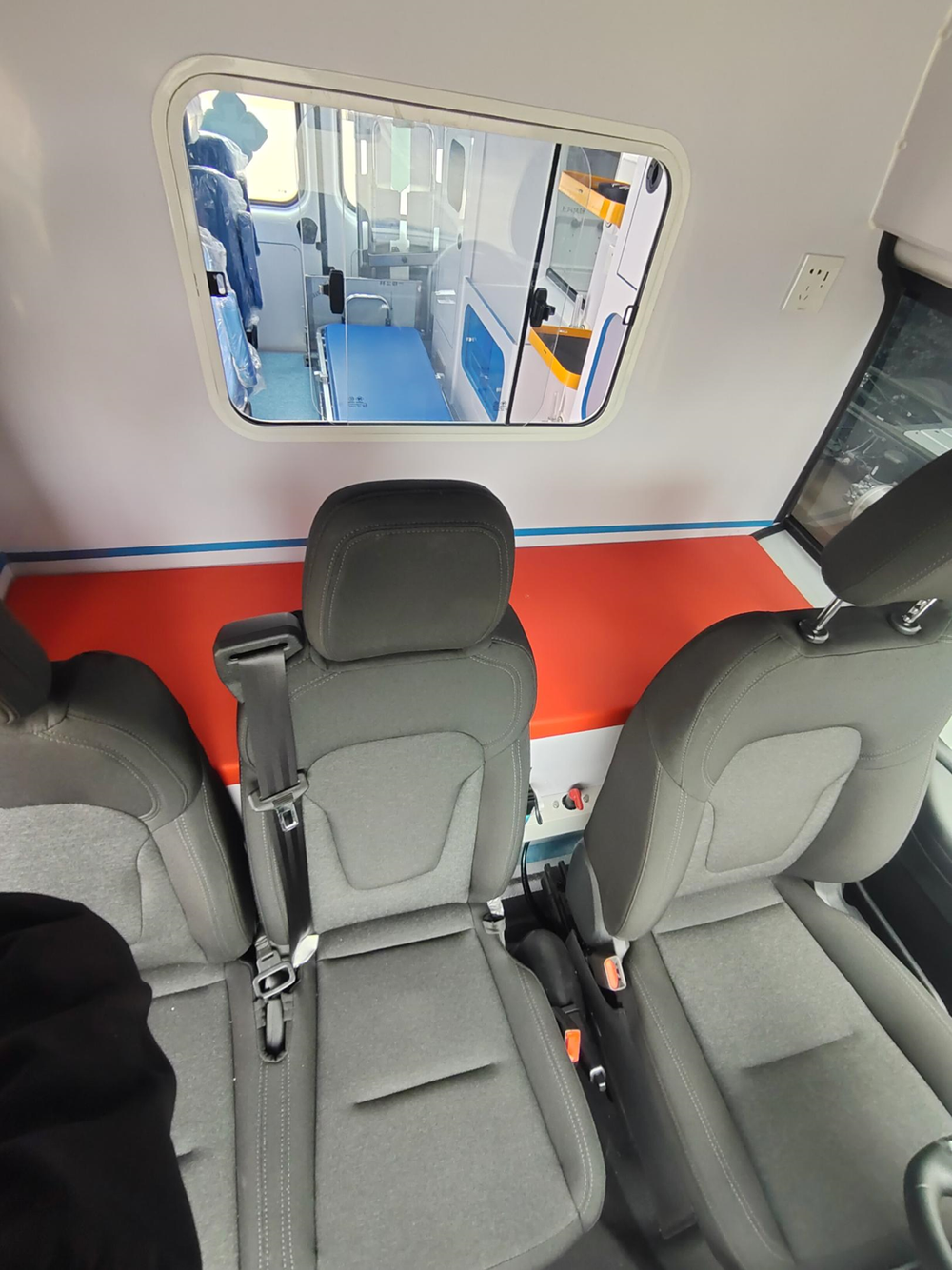

Partition Assembly between Cab & Medical Cabin,1set	With sliding window

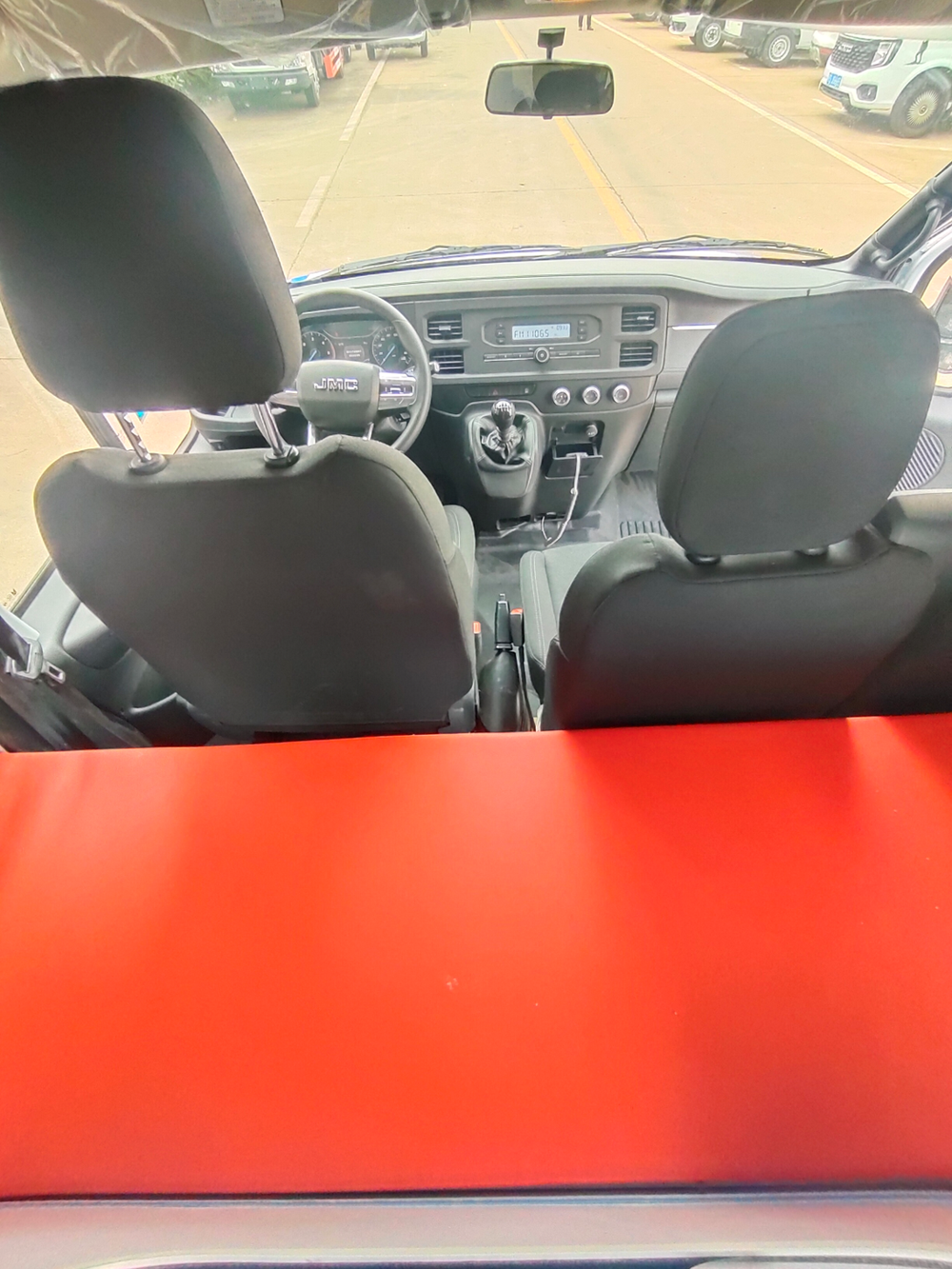

Cab with Berth + Two 40L Oxygen Cabinets under berth,1set	Customized as per customer request
Left-front Storage Cabinet of Medical Cabin,1set	Store medical supplies
Window-side Medical Cabinet,1set	With equipment platform
Left-rear Oxygen Cabinet,1set	Hold two 10L oxygen bottles
Top Long Wall Cabinet on Upper Left,1set	For storage
Independent Right Seat + Long Bench,1set	For medical staff & patient families
Aluminum Composite Ceiling Liner,1set	Elegant & easy to clean
3-tier Adjustable Equipment Rack,1set	Fix medical devices
Medical Grade Anti-bacterial Floor Mat,1set	Waterproof, anti-corrosion, wearproof & antibacterial
Full Cabin Surround Trim,1set	Anti-collision, neat & easy to clean
Auxiliary Accessories
Ceiling Handrail,1pc	Yellow painted
Entry Handrail,1pc	Yellow painted
Middle Door Mechanical Foot Step,1pc	Mechanical pedal
Middle Door Sliding Window,1set	Improve cabin ventilation
Cab Seat Surround Wrap,1set	Beautiful & easy to clean
Foot-operated Medical Waste Bin,1pc	Pedal type
Dry-powder Fire Extinguisher for Cabin,1pc	Dry powder type
