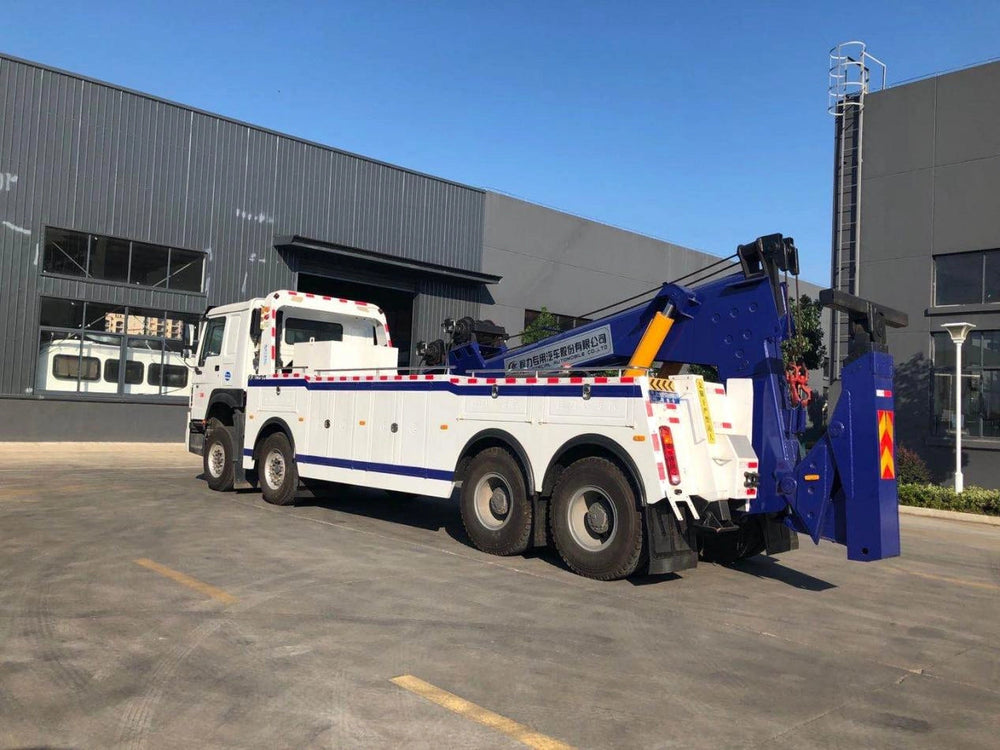

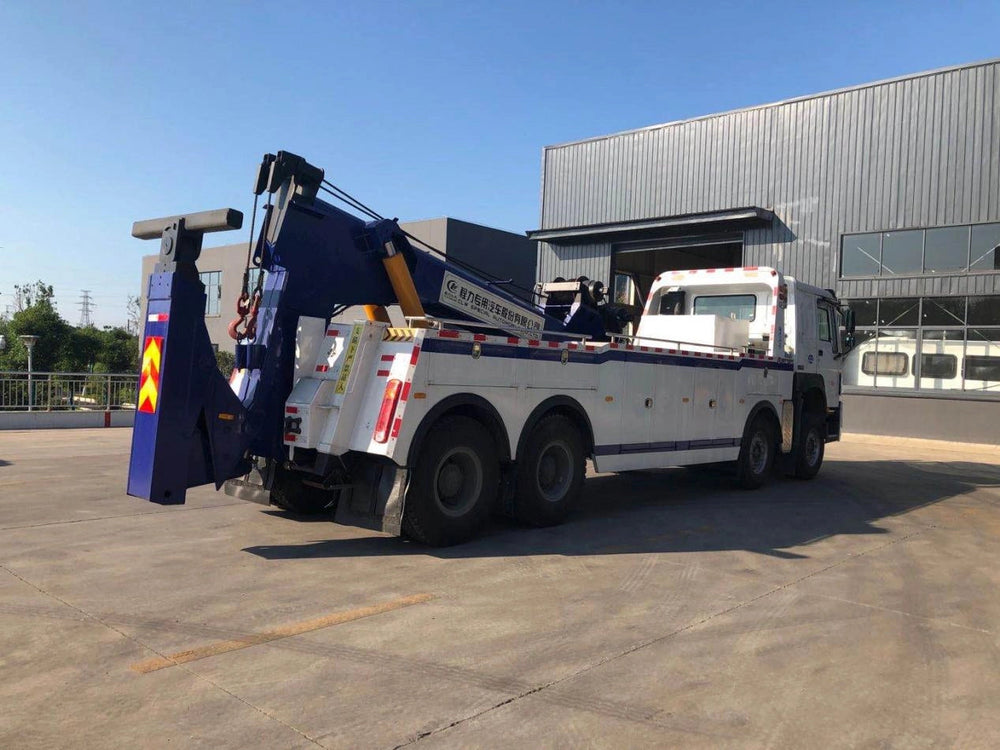

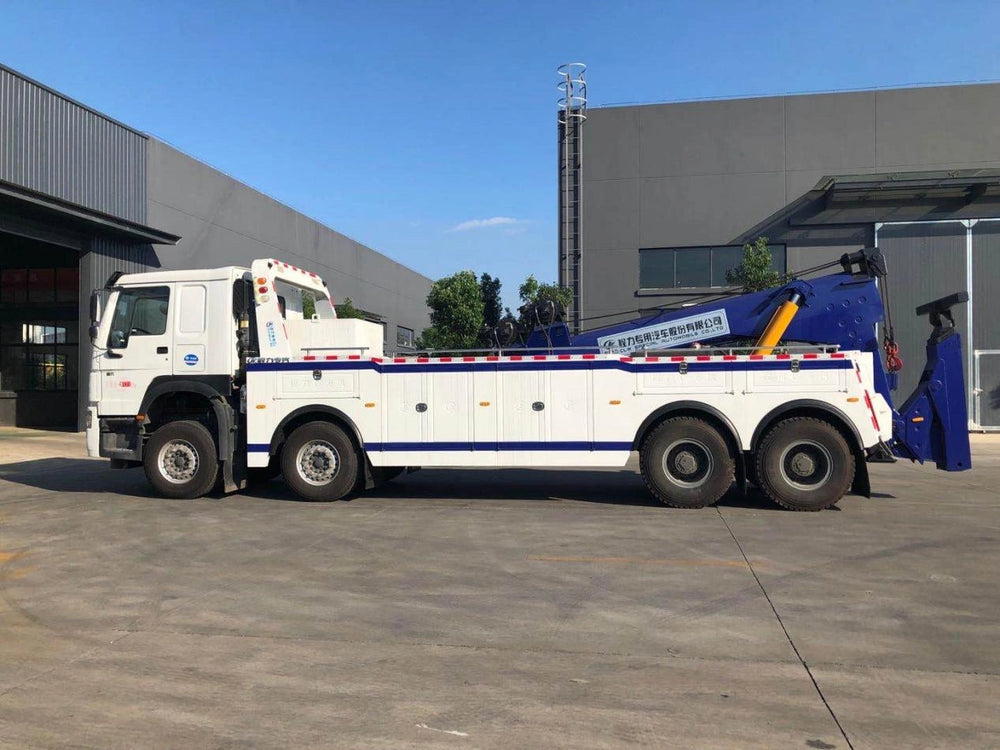

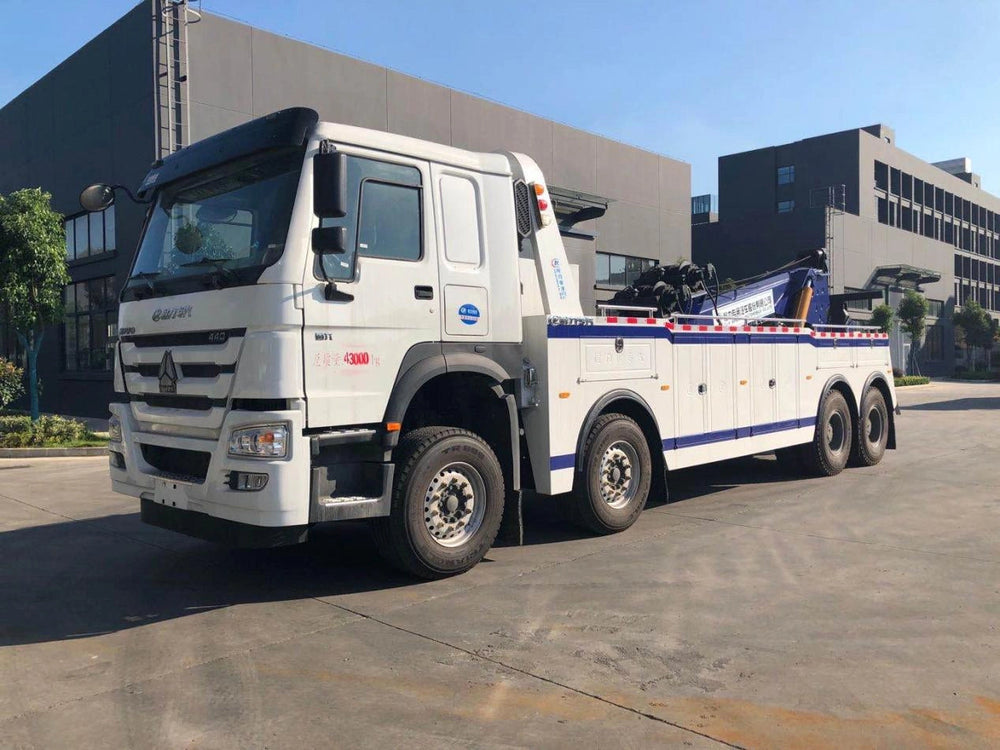

Heavy Duty Tow Truck (25T)

1 / 4

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Shenbai FAW TOW Truck (25T) – Standard Specification Sheet

1. VEHICLE BASIC INFORMATION

Parameter	Specification
Vehicle Name	Shenbai FAW TOW Truck (25T)
Vehicle Type	Heavy-Duty Towing & Recovery Wrecker (Tow-Drag Integrated Type)
Overall Dimensions (L×W×H)	10,620 × 2,500 × 3,360 mm
Total Mass (GVW)	25,000 kg (25 tons)
Curb Weight (Kerb Mass)	18,720 kg
Fuel Type	Diesel
Emission Standard	China V (GB17691-2005, GB3847-2005)
Drive Type	6×4 (Rear Dual Axle)

2. CHASSIS PARAMETERS

Parameter	Specification
Chassis Brand	FAW Jiefang J6
Chassis Model	CA5250JSQP63K1L5T1E5
Cab Type	FAW J6M Flat Roof Cab / J6L Flat Roof Cab
Axle Configuration	3 axles (Rear Dual Axle)
Wheelbase	5,800 + 1,350 mm
Tire Specification	10.00R20 (11 tires including spare)
Brake System	Spring Brake (Air Brake with ABS)
Front Axle Capacity	5 tons
Rear Axle Capacity	10 tons

3. ENGINE PARAMETERS

Parameter	Specification
Engine Model	CA6DK1-28E5
Manufacturer	FAW (China First Automobile Works)
Displacement	7,146 ml
Horsepower	285 HP
Emission Standard	China V / Euro V equivalent

4. TRANSMISSION PARAMETERS

Parameter	Specification
Transmission Type	Manual
Transmission Model	10-speed (FAW 10-speed transmission)
Alternative	8-speed (Shaanxi Tooth 8-speed)

5. TOWING & RECOVERY EQUIPMENT (UPPER BODY)

Parameter	Specification
Upper Body Type	25T Integrated Tow-Drag Body (or 20T optional upgrade)
Maximum Towing Capacity	25 tons
Maximum Lifting Capacity	18 tons
Maximum Lifting Height	6,500 mm
Boom Type	2-section Hexagonal Boom
Towing Arm Type	3-section Towing Arm
Winch	2 × 10-ton Hydraulic Winches
Wire Rope Length	45 meters
Wire Rope Diameter	18 mm
Hydraulic System	Imported hydraulic system
Control System	Remote control + Dual-side linkage operation

6. STANDARD EQUIPMENT & ACCESSORIES

Item	Quantity
Steel Forks	4 sets
Tow Fork Set	1 set
Steel Plate Lifting Tow Fork	1 set
Tire Clamping Device	1 set
Long Row Engineering Warning Light	1 set (Yellow LED)
Auxiliary Light Set	1 set
Auxiliary Air Pipe Set	1 set
Binding Chains	2 pieces
Tool Kit	1 set

7. PERFORMANCE FEATURES

Feature	Description
Boom Structure	Hexagonal boom design – superior strength and stability vs. square-section booms
Hydraulic Technology	Italian multi-way valves & balance valves; German technology hydraulic cylinders & fittings
Seals	Full imported sealing components
Chassis Reinforcement	Reinforced cross-member fixation for enhanced load capacity
Cab Comfort	Factory air conditioning, power steering, ABS standard

Notes:

Specifications may vary depending on the specific configuration, upper body option (20T vs 25T), and production batch.
Emission standards can be upgraded to China VI / Euro VI upon request.
Dimensions and weights are approximate and subject to final manufacturing tolerances.
The 25-ton rating refers to the maximum towing capacity; actual performance depends on road conditions and the weight of the vehicle being towed.

Shenbai (Hubei Shenbai Special Automobile Co., Ltd.) is a manufacturer of special-purpose vehicles including truck-mounted cranes, wreckers, and low-bed trailers
