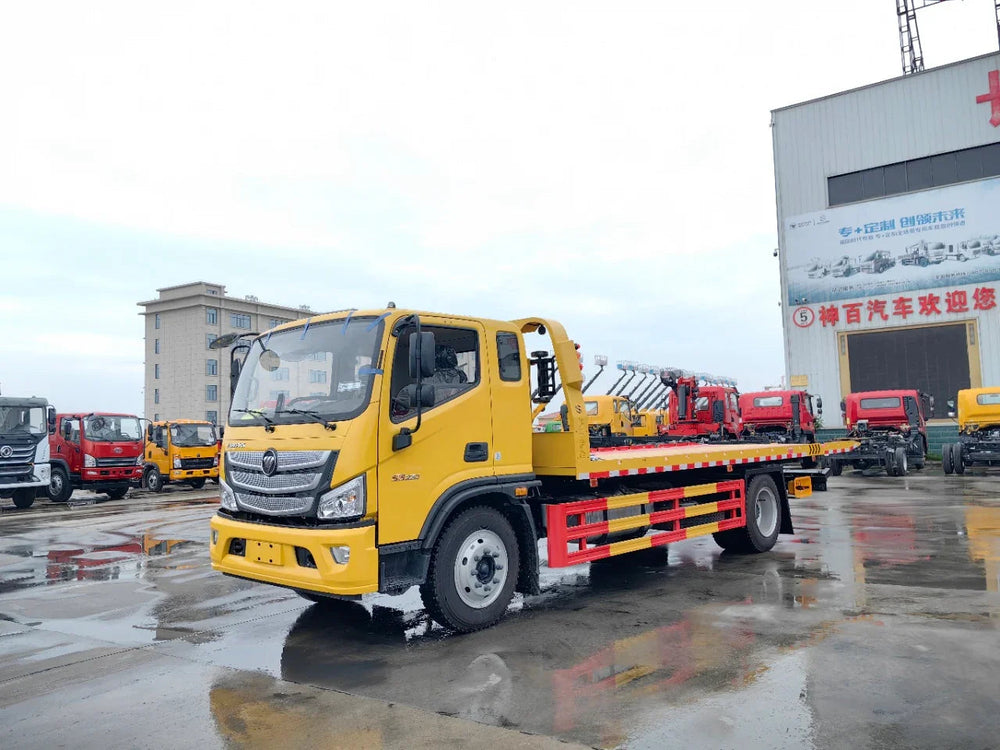

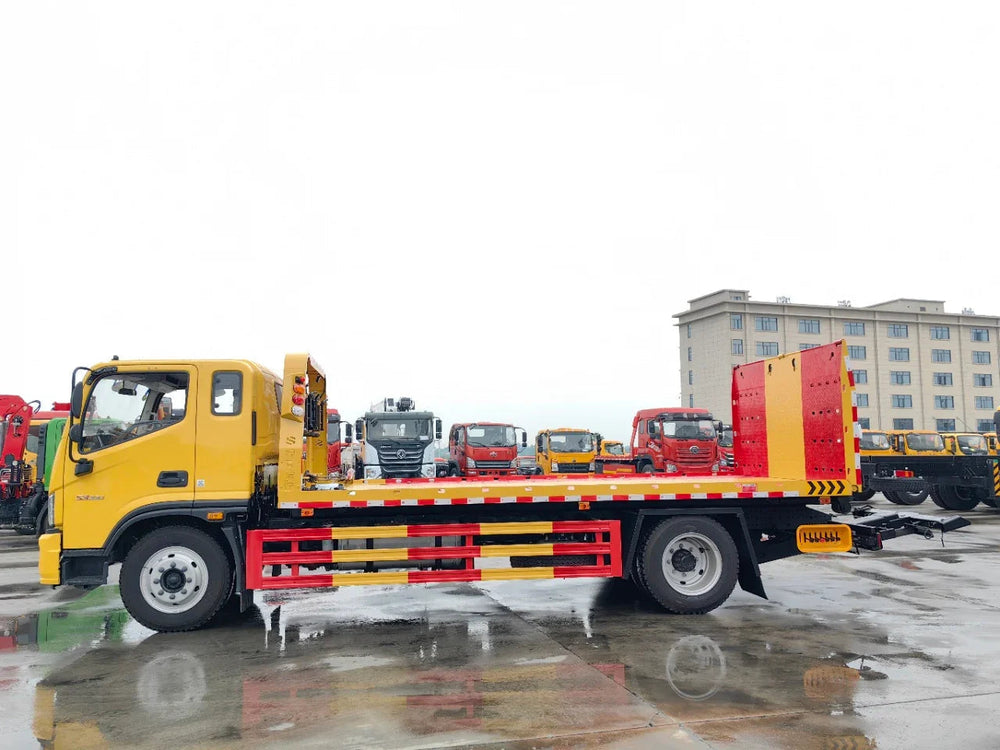

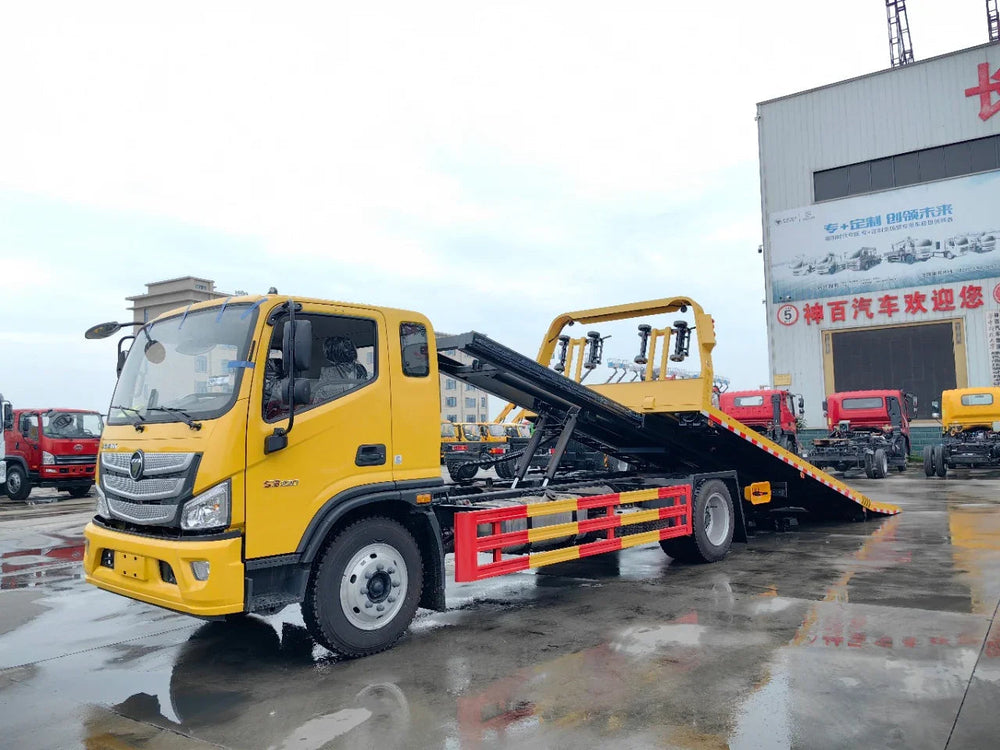

FOTON 6T Wrecker Truck
Request a Quote Now
| Configuration Item | Specification |
| 1. Chassis Configuration | |
| Cab Type | Foton Aumark crew cab with forward-tilting function |
| Wheelbase | 4700mm |
| Engine | Cummins 220 horsepower engine |
| Gearbox | Shaanxi Fast 8-speed gearbox |
| Tires | 8.25R20 tires |
| Front Axle | 4.6T front axle |
| Rear Axle | 9T rear axle with 4.875 speed ratio |
| Leaf Spring Quantity | 3/10+8 leaf springs |
| Gross Vehicle Weight | 14055kg |
| Fuel Tank | 200L aluminum alloy fuel tank |
| Standard Factory Components | Original factory power take-off (PTO), original factory 3-layer through beam |
| Steering Wheel | Multi-function steering wheel |
| Instrument Cluster | LCD instrument cluster |
| Other Configurations | The rest are in accordance with the standard chassis configuration |
| 2. Upper Mounting Configuration | |
| Upper Mounting Type | One-tow-two upper mounting structure |
| Manufacturing Process | Sunken upper mounting process (to lower the center of gravity of the flatbed) |
| Flatbed Dimensions | Total length: approx. 6.5m, width: 2.55m |
| Tail Flip Length | 1.2m tail flip section |
| Flatbed Material | Made of 5mm wear-resistant checkered plate |
| Frame | 14mm solid steel plate frame with cut holes |
| Tail Hinges | Tail through-shaft detachable flip hinges |
| Slide Rails | 10mm manganese steel slide rails (reinforced with 8mm steel plate bound outside the flared opening) |
| Under-Plate Reinforcement | Dense grid-shaped reinforcement under the plate, dense triangular diagonal bracing |
| Winch | 6-ton winch |
| Rear Support Arm | 6-ton rear support arm |
| Hydraulic Valve | Zhongmei hydraulic multi-way valve |
| Oil Cylinders | 110-type flatbed telescopic oil cylinder, 110-type lifting oil cylinder |
| 3. On-board Accessories | |
| Gantry Side Lights | 1 set of gantry side lights |
| Rear LED Work Lights | 2 rear LED work lights |
| Lashing Straps | 4 lashing straps |
| Triangular Tire Stoppers | 1 pair of triangular tire stoppers |
| Square Tire Holding Tubes | 1 pair of square tire holding tubes |
| L-shaped Forks | 1 pair of L-shaped forks |
| Tool Box | 1 tool box |
