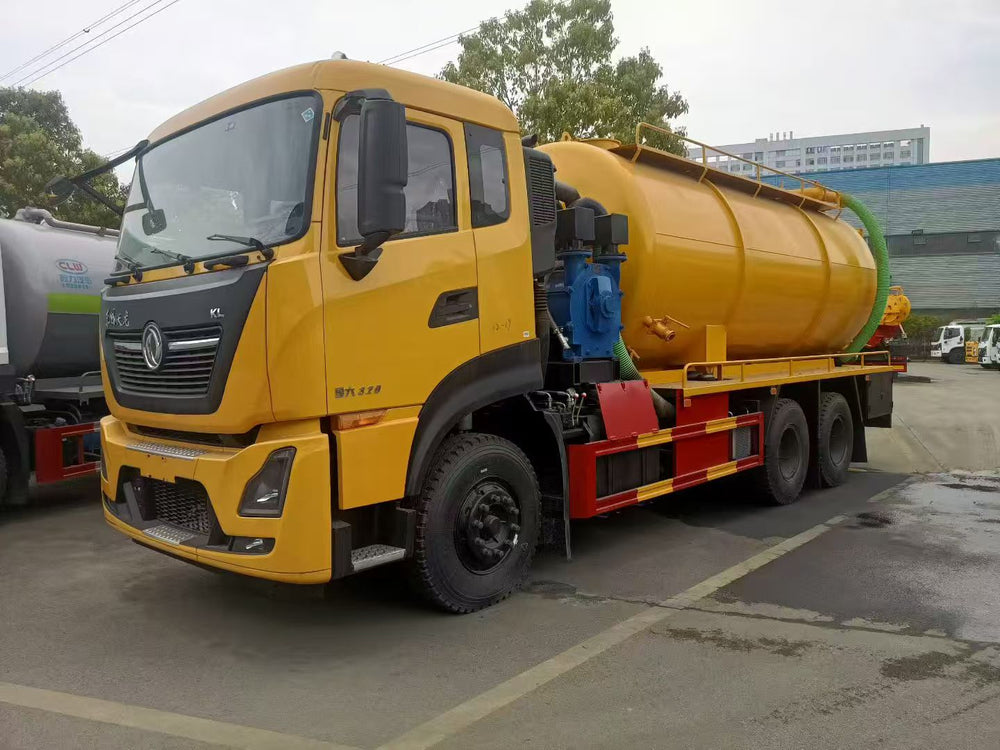

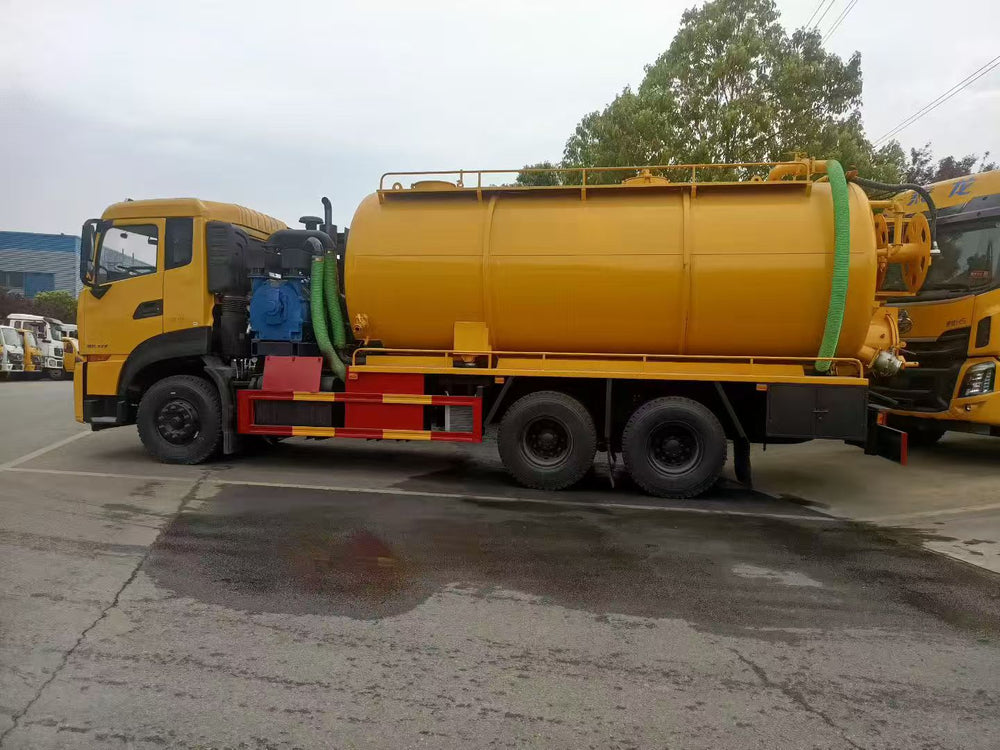

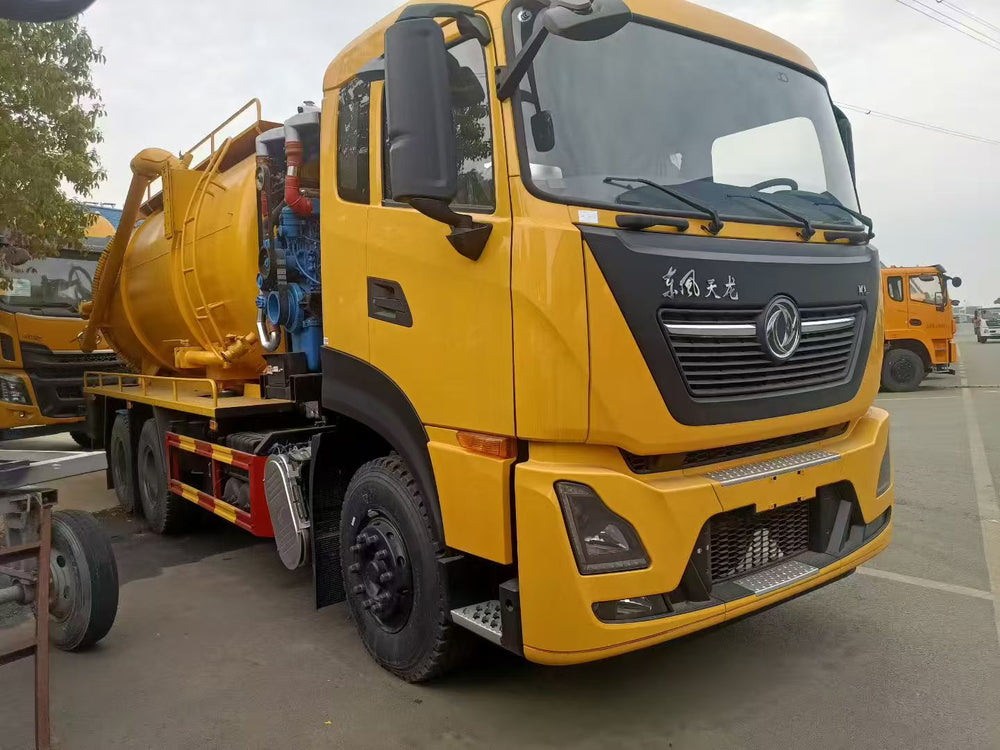

Model: CL5250GQW6CC

(1) Chassis Configuration:

• Cummins 320 HP diesel engine

• FAST manual transmission

(2) Superstructure & Tank Configuration:

• Total tank volume: approximately 22 cubic meters

• Constructed from 8mm carbon steel plates

• Clean water compartment: approximately 5 cubic meters; remaining capacity dedicated for vacuum sludge collection

• The two compartments are interconnected via a ball valve for operational flexibility

• A bulkhead is installed between the two compartments for secure separation

• Equipped with a Pinfeng 350-flow-rate high-pressure cleaning pump

• Supplied with 100 meters of high-pressure hose

• 258 water-ring vacuum pump driven by a 420 HP auxiliary engine

• Hose reel is mounted on the rear head with 180-degree rotation capability

• Rear head is hydraulically operated for opening and closing

• One 800mm cement-type discharge cover on the rear head for sludge dumping, with hydraulic opening mechanism

• One 150mm side-mounted swing-type ball valve

• One 150mm rear outlet ball valve

• One 100mm rear ball valve

• Interior of the tank is lined with stainless steel plates for enhanced corrosion and abrasion resistance

• Heavy-load rated design throughout the vehicle

• Arrow-type warning lights mounted at the rear of the tank

• Equipped with a visual sludge inspection window

• Comes with 8 meters of vacuum suction hose

• All other standard factory-fitted accessories are included as per manufacturer's specifications
