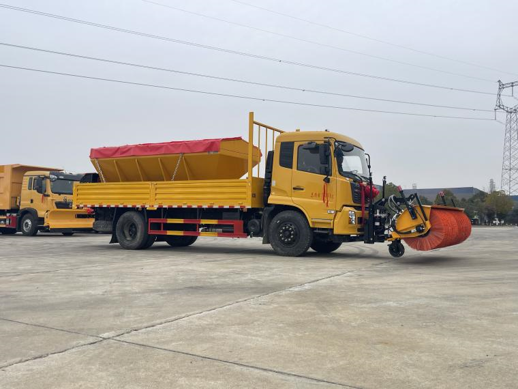

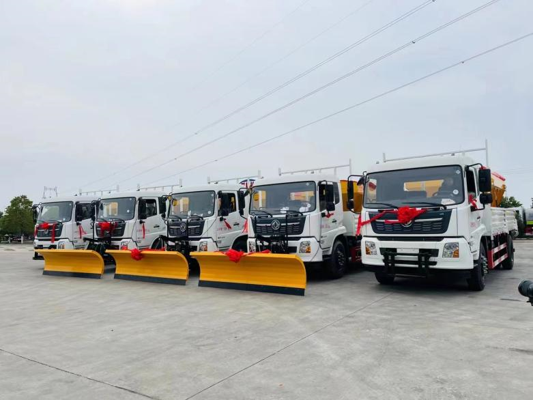

DongFeng 8m³ 210HP Snow Removal Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Snow Removal Truck |
| Complete Vehicle Model | CL5180TCX6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 8805 kg |
| Curb Weight | 9000 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 89 km/h |
| Chassis Model | DFH1180EX8 |
| Chassis Type | Cargo Truck Chassis |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8920 / 8890 / 8720 / 8690 / 9110 × 2500 × 3300 / 3550 mm |
| Wheelbase | 4700 mm |
| Front Overhang / Rear Overhang | 1400/2330 mm, 1430/2330 mm |
| Approach Angle / Departure Angle | 17° / 10° |
| Front Track Width | 1914 mm |
| Rear Track Width | 1840 mm |
| Tire Specification | 10.00R20 18PR |
| Number of Tires | 6 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model Options | B6.2NS6B230 / DDi47E210-60 |
| Engine Power Options | Cummins 230 HP / Longqing 210 HP |

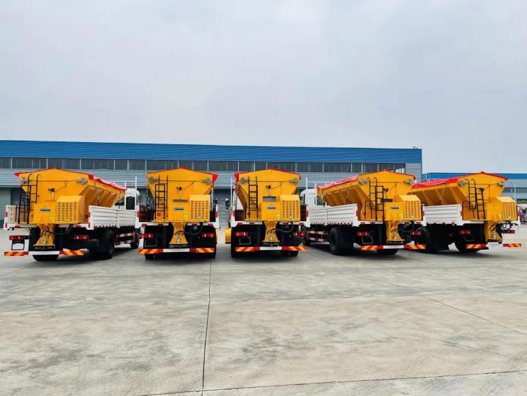

4. Hopper & Deicing Agent Spreader
| Parameter | Value |
|---|---|
| Hopper Material | Q235 Carbon Steel |
| Hopper Dimension (L×W×H) | 6000 × 2500 × 550 mm |
| Spreader Hopper Volume | 8 m³ |
| Spreader Material | 5mm Carbon Steel |
| Power Take-off Mode | Chassis PTO-driven |
| Hydraulic Working Pressure | ≥ 16 MPa |
| Material Conveying Type | Scraper Chain Conveyor |
| Spreading Width | 2 – 14 m (adjustable) |
| Spreader Disc Material | Stainless Steel |
| Spreader Disc Diameter | 550 mm |
| Deicing Agent Application Rate | 20 – 300 g/m² (adjustable) |
| Working Speed | 5 – 45 km/h |
| Control Mode | Wired in-cab operation |
| Standard Accessories | Arrow warning light, tarpaulin, filter screen, rear climbing ladder |
| Uniform Feeding Feature | Filter screen prevents large particles/debris from entering, ensures equipment and traffic safety |
| Loading/Unloading Feature | Detachable dedicated lifting support system for easy storage in non-operating state |
| Structural Feature | V-shaped hopper with simple reliable structure, ensures automatic complete discharging with no residue |

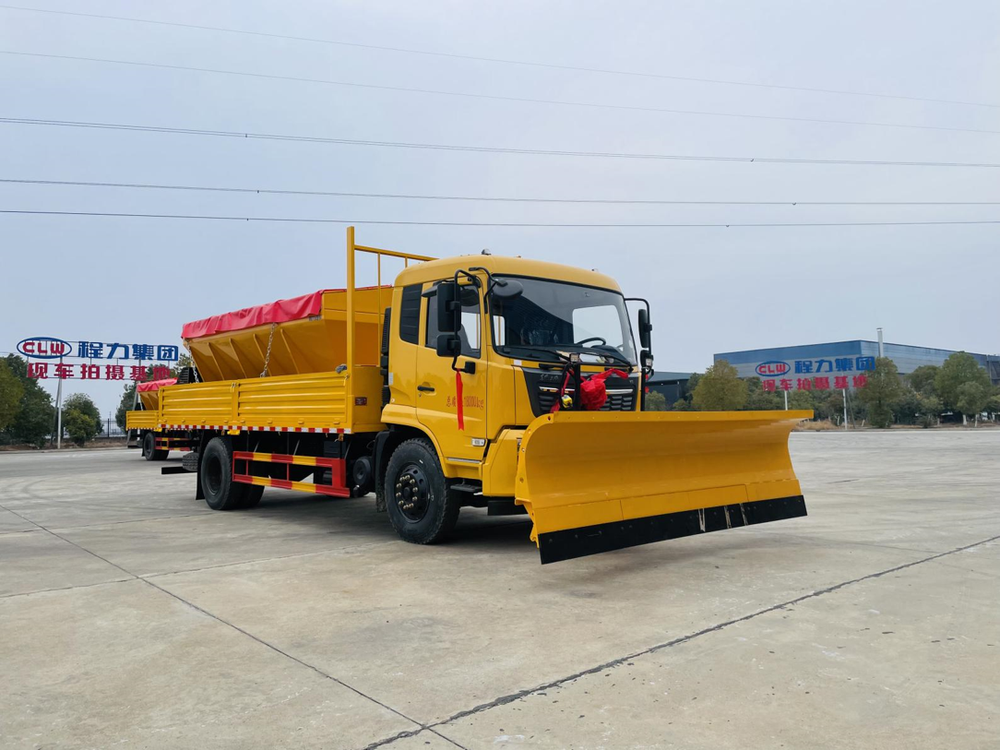

5. Optional 3m Snow Plow
| Parameter | Value |
|---|---|
| Snow Clearing Width | 3 m |
| Left-Right Adjustment Angle | ± 30° |
| Working Speed | ≥ 30 km/h |
| Obstacle Clearance Height | 150 mm |
| Control Mode | Wired Remote Control |
| Drive System | Independent Hydraulic Unit |

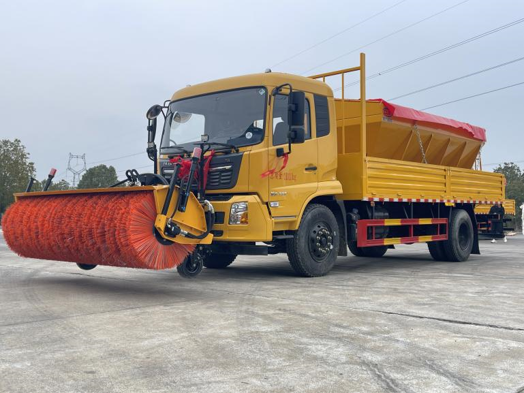

6. Optional 3m Snow Roller Brush
| Parameter | Value |
|---|---|
| Sweeping Width | 3 m |
| Left-Right Adjustment Angle | ± 30° |
| Brush Diameter | 800 mm |
| Working Speed | 5 – 30 km/h |
| Obstacle Clearance Height | 250 mm |
| Vertical Deflection Angle | 6.5° |
| Control Mode | Wired In-Cab Operation |
| Drive System | Independent Hydraulic Unit |
| Brush Material | Polypropylene mixed with elastic steel wire |
| Support Wheels | 2 load-bearing wear-resistant universal wheels |
| Brush Protection | Support rods on both ends to prevent brush crushing damage |
| Position Indicator | Warning lights for brush head position monitoring during operation |
7. Chassis Standard Configuration
| Parameter | Value |
|---|---|
| Chassis Color | Jade White |
| Transmission | Fast 8-Speed Gearbox |
| Axle Brand | Dana Axles |
| Cab Interior | Original Factory Air Conditioner, Electric Windows, Central Door Locking |
| Brake System | ABS Anti-Lock Braking System, Air-Over-Hydraulic Spring Brake, Exhaust Brake |
| Frame Specification | 250mm Double-Layer Frame |
