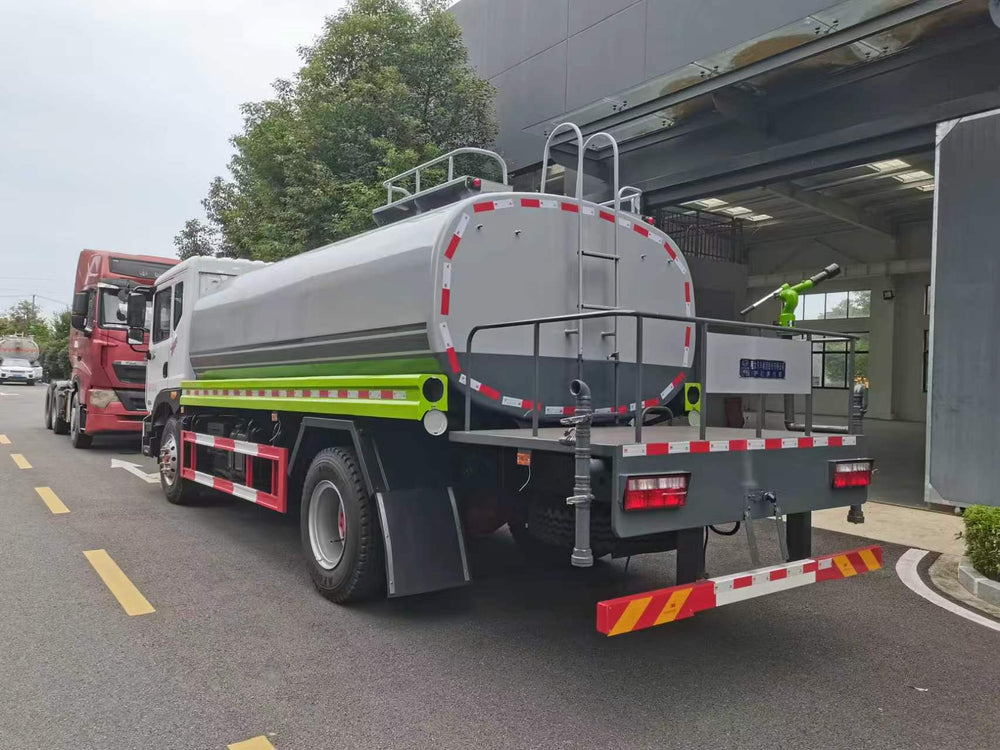

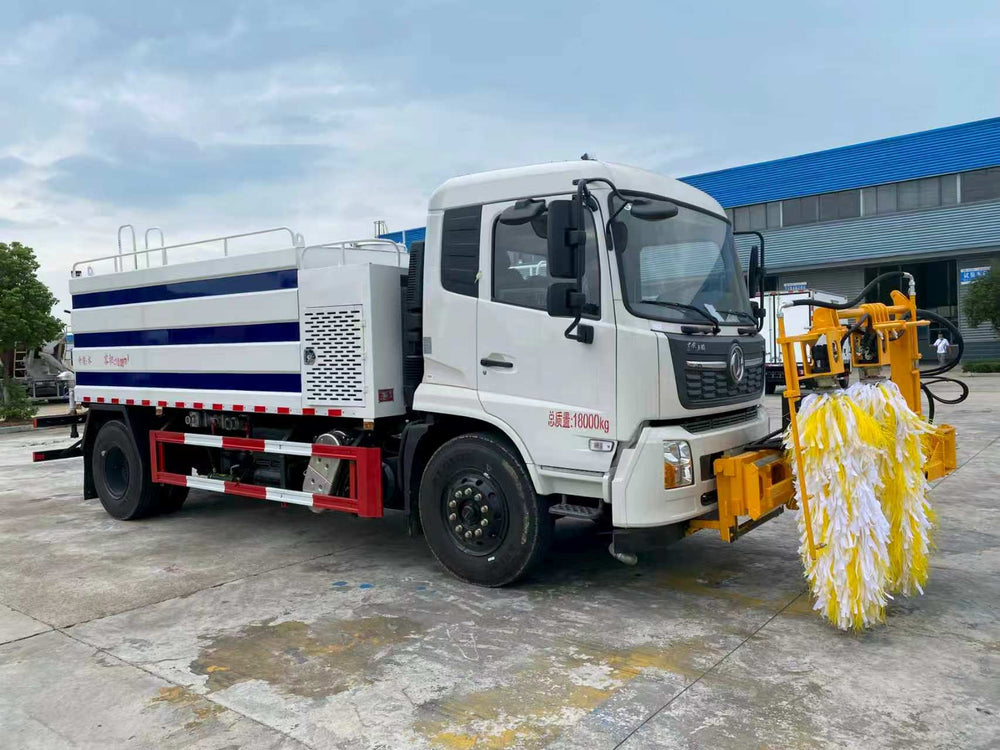

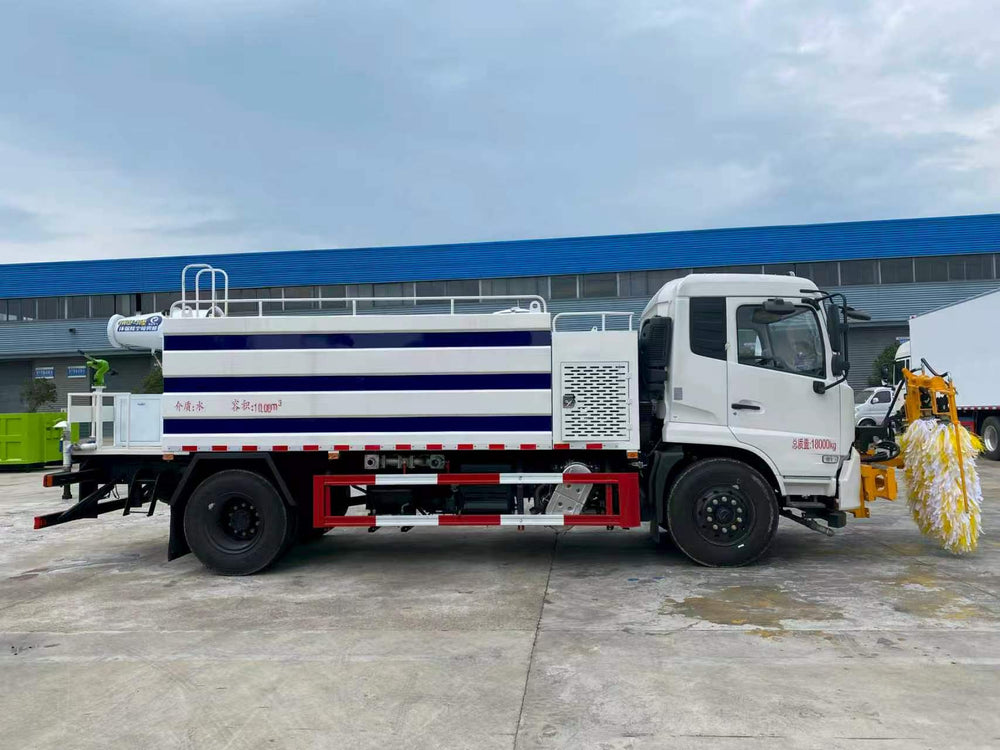

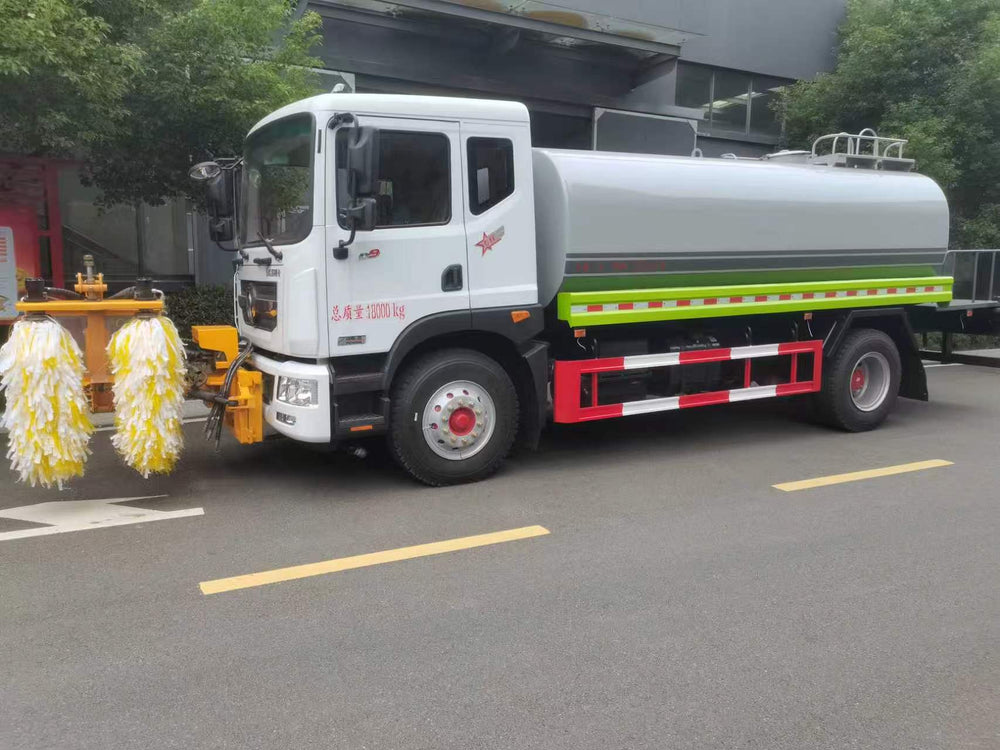

DongFeng 13m³ Guardrail Cleaning Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | High-Speed Road Cleaning Truck |
| Complete Vehicle Model | CL5186GQX6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 9670 kg / 9605 kg |
| Curb Weight | 8200 kg |
| Number of Axles | 2 |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 3 persons / 2 persons |
| Maximum Speed | 89 km/h / 98 km/h |
| Chassis Model | DFH1180EX8 |
| Chassis Type | Cargo Truck Chassis |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8100/8300/9300/9500 × 2400/2500 × 3200/3300 mm |
| Wheelbase | 4500 mm / 4700 mm |
| Front Overhang / Rear Overhang | 1400/2100 mm, 1430/2070 mm |
| Front Track Width | 1876 / 1896 / 1920 / 1950 / 1914 / 1934 / 1980 / 2000 / 1815 / 1860 mm |
| Rear Track Width | 1820 / 1860 / 1800 / 1840 mm |
| Tire Specification | 10.00R20 18PR |
| Number of Tires | 6 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Options | Cummins 230 HP / Longqing 260 HP |
| Fuel Type | Diesel |
| Transmission | Shaanxi Fast 8-speed Gearbox |
4. Water Tank & Sprinkler System
| Parameter | Value |
|---|---|
| Tank Effective Volume | 9.77 m³ (approx. 13 m³ total) |
| Tank External Dimension | 3800 × 2450 × 1300 mm |
| Tank Material | Q235 Carbon Steel |
| Tank Wall Thickness | 4 mm |
| Sprinkler Pump Model | Tianyi 60-90 Water Pump |
| Standard Sprinkler Functions | Front flush, rear spray, S-type high-pressure water cannon, fire hose connection, tank anti-corrosion coating, side protection, climbing ladder, thickened perforated rear work platform, suction hose, reversing camera, pneumatic ball valve |
| Optional Accessories | 30-meter fog cannon, arrow warning light |
5. High-Speed Cleaning Power System
| Parameter | Value |
|---|---|
| Power Take-off Mode | Chassis PTO-driven |
| System Working Pressure | 4 MPa |
| System Flow Rate | 40 L/min |
| Cleaning Brush Quantity | 2 cylindrical brushes |
| Brush Diameter | 700 mm |
| Brush Length | 600 – 800 mm |
| Brush Rotation Speed | 300 rpm |
| Cleaning Arm Lifting Range | 1000 – 1500 mm |
| Auxiliary Engine Model | Jiangling Lingfa |
| Auxiliary Engine Working Speed | 1500 – 1700 rpm |
| High-Pressure Water Pump Brand | Putzmeister (Germany) |
| High-Pressure Pump Pressure | 12 MPa |
| High-Pressure Water Flow | 170 L/min |
| Water Pump Flow Range | 0 – 42.3 L/min |
| Cleaning Type | High-pressure washing type |
| Control Mode | In-cab operation; electro-hydraulic control |
| Brush Material | Ultra-soft polyethylene multi-filament + adhesive cloth strips |
| Working Cleaning Speed | 2 – 20 km/h |
| Standard System Accessories | Auxiliary engine, high-pressure pump, hydraulic oil tank, filter, hydraulic pump, hydraulic motor, distribution valve, oil cylinder, hydraulic hoses, water cooling system |
6. Chassis Standard Configuration
| Parameter | Value |
|---|---|
| Cab Type | Half-row crew cab |
| Cab Color Options | Sheep Fat White / Engineering Yellow |
| Front Axle Rated Load | 4.5 Tons |
| Rear Axle Rated Load | 9 Tons |
| Frame Specification | 250 mm Frame |
| Driver Seat | Air Suspension Seat |
| Cab Interior | Original factory air conditioner, electric windows, central door locking |
| Brake System | ABS anti-lock braking system, exhaust brake |
| Safety Feature | Seatbelt voice alarm reminder |
