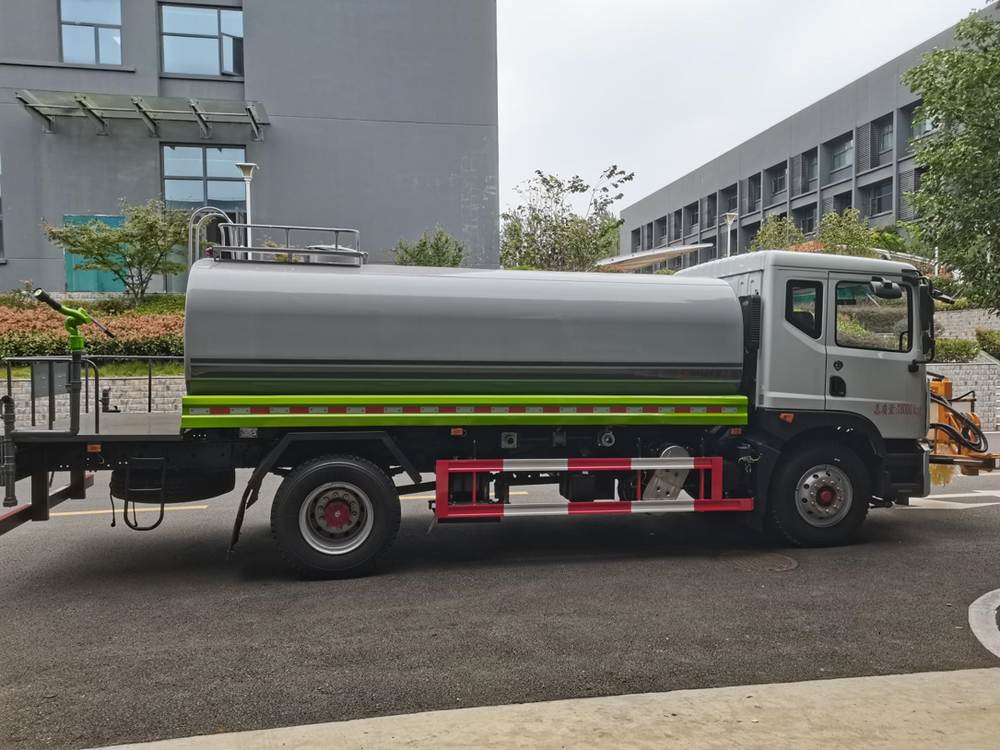

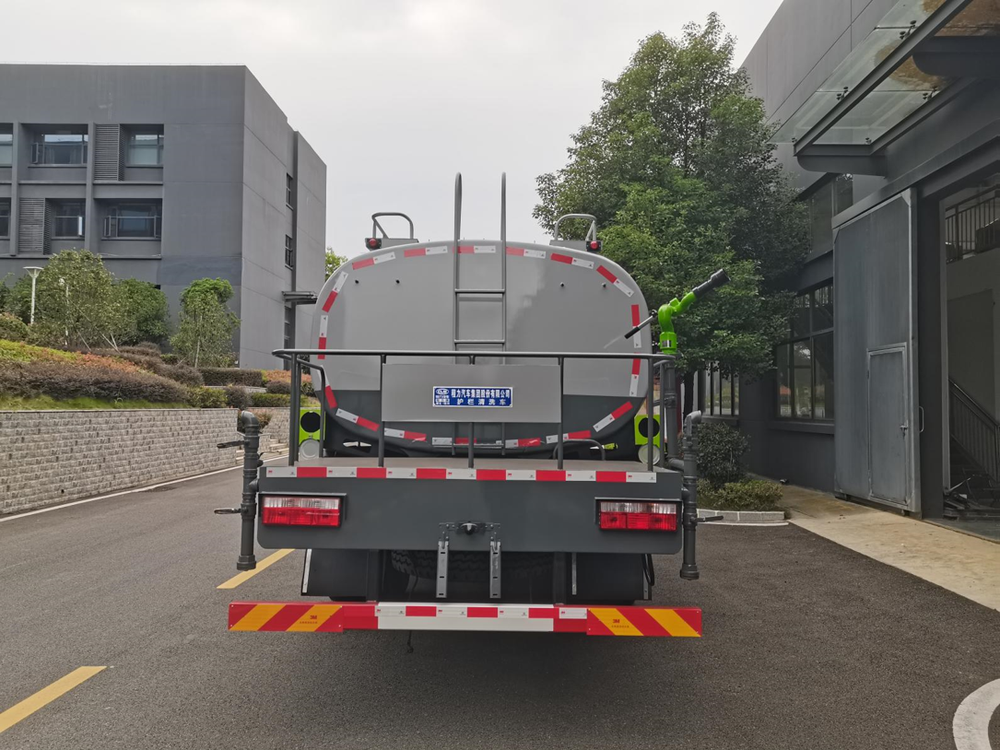

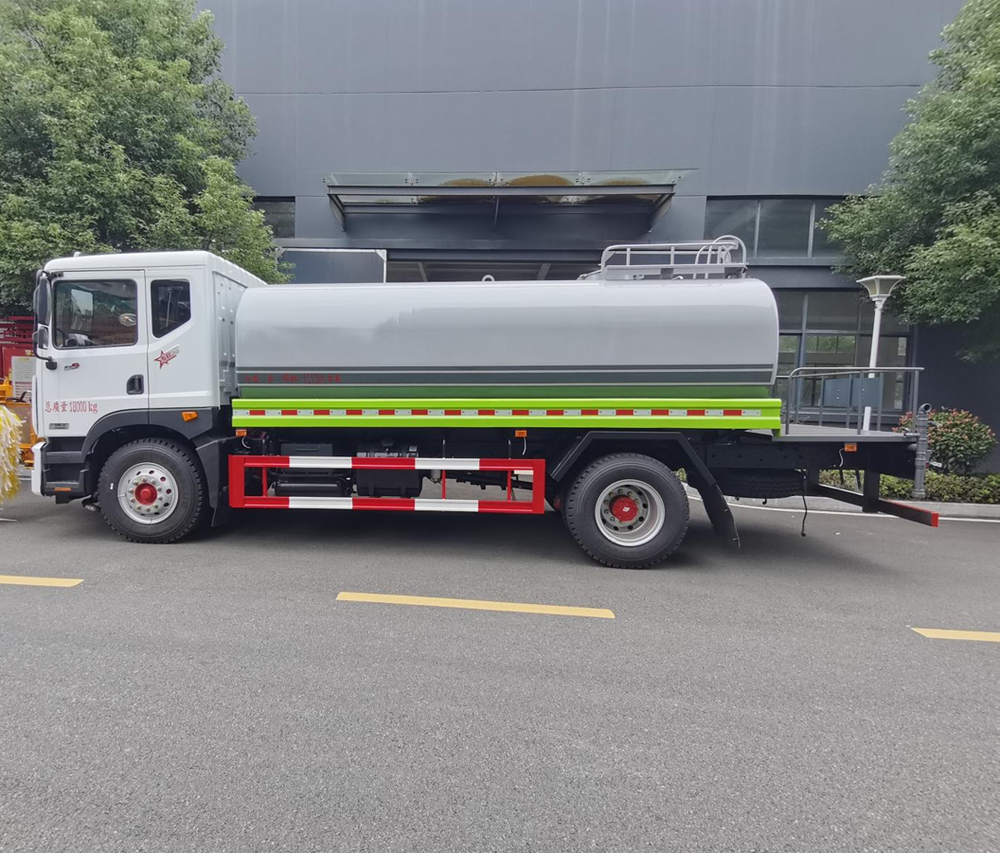

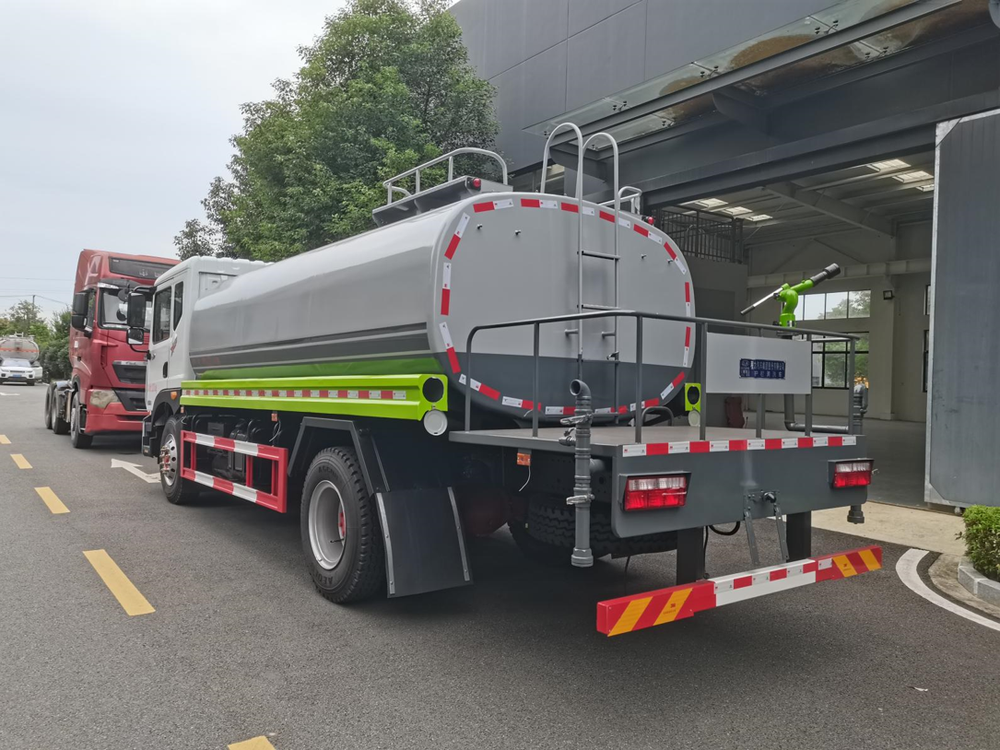

DongFeng 11m³ Guardrail Cleaning Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Urban Guardrail Cleaning Truck |
| Complete Vehicle Model | CL5180GQX6AHL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 10670 kg / 10605 kg |
| Curb Weight | 7200 kg |
| Number of Axles | 2 |
| Cab Seating Capacity | 3 persons |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 National VI |
| Maximum Speed | 105 km/h / 89 km/h |
| Chassis Model | EQ1185LJ9CDE |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 8530 / 9750 × 2500 × 3200 mm |
| Wheelbase | 4500 mm |
| Front Overhang / Rear Overhang | 1260/2590 mm, 1450/2400 mm, 1420/2430 mm |
| Approach Angle / Departure Angle | 16°/10°, 16°/11°, 16°/12° |
| Front Track Width | 1862 / 1933 / 1949 / 1904 mm |
| Rear Track Width | 1806 / 1865 mm |
| Tire Specification | 10.00R20 18PR |
| Number of Tires | 6 |
| Leaf Spring Configuration | 8 / 10+7, 8 / – |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model Options | B6.2NS6B230 / D4.0NS6B195 |
| Engine Power Options | Cummins 230 HP / Cummins 195 HP |
4. Water Tank & Sprinkler System
| Parameter | Value |
|---|---|
| Tank Volume | 11.13 m³ |
| Tank Material | Q235 Carbon Steel |
| Tank Wall Thickness | 4 mm |
| Splash Guard Thickness | 3 mm |
| Sprinkler Pump Model | Tianyi 50-110 Water Pump |
| Standard Functions | Front flush, rear spray, S-type high-pressure water cannon, fire hose connection, tank anti-corrosion coating, side protection, climbing ladder, thickened perforated rear work platform, suction hose, reversing camera, pneumatic ball valve, low water level protection device |

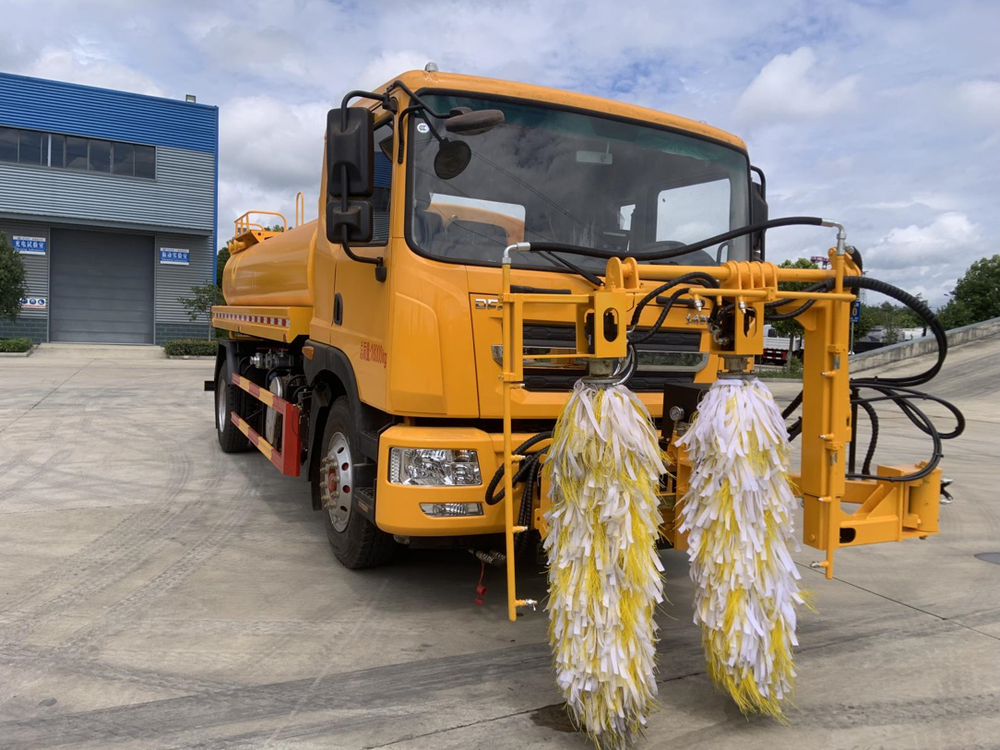

5. Guardrail Cleaning Power System
| Parameter | Value |
|---|---|
| Power Take-off Mode | Chassis PTO-driven |
| System Working Pressure | 4 MPa |
| System Flow Rate | 40 L/min |
| Cleaning Brush Quantity | 2 cylindrical brushes |
| Brush Diameter | 700 mm |
| Brush Length | 1000 mm |
| Brush Rotation Range | 90° |
| Cleaning Arm Lifting Range | 500 – 1000 mm |
| Brush Rotation Speed | 300 rpm |
| Water Pump Flow Range | 0 – 42.3 L/min |
| Brush Material | Ultra-soft polyethylene multi-filament + adhesive cloth strips |
| Control Mode | Electro-hydraulic control; in-cab operation |
| Working Cleaning Speed | 2 – 20 km/h |
| Standard System Accessories | Hydraulic oil tank, filter, hydraulic pump, hydraulic motor, distribution valve, oil cylinder, hydraulic hoses, water cooling system |
6. Chassis Standard Configuration
| Parameter | Value |
|---|---|
| Cab Color | Sheep Fat White |
| Axle Brand | Dana Axles |
| Front Axle Rated Load | 4.5 Tons |
| Rear Axle Rated Load | 10 Tons |
| Frame Specification | 250 mm Frame |
| Cab Interior | Original factory air conditioner, electric windows, central door locking |
| Brake System | ABS anti-lock braking system, air-over-hydraulic spring brake, exhaust brake |
